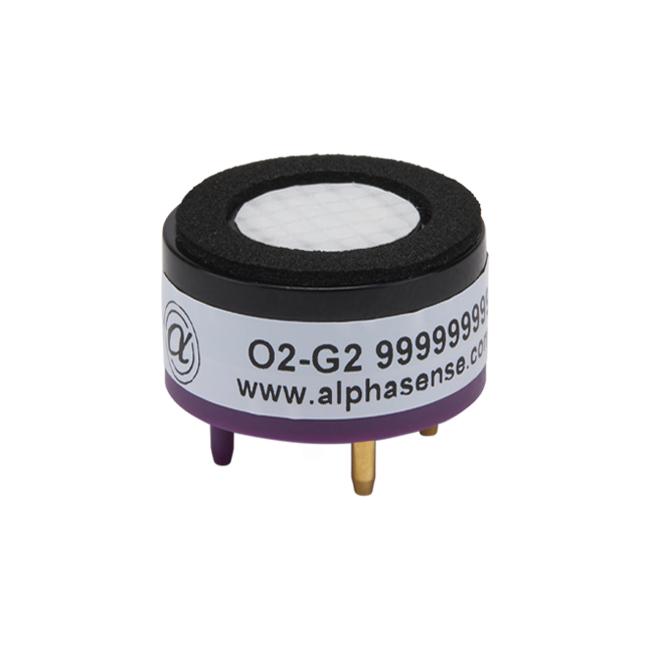

UK alphasense Oxygen Sensor (Small Size O2 Sensor) - O2-G2
(1) Operating Life: >2 years
(2) Dimensions (mm): Φ20.3×10.2mm
(3) Output: 30 - 42 μA @ 22°C, 20.9% O2
(4) Response Time t90 (seconds): <18S
(5) Weight: < 7g
(6) Temperature Range: -30 - 55℃
(7) Pressure Range: 80 - 120Kpa
(8) Humidity Range: 5 - 95%RH
(9) Storage Time: 6 months
(10) Load Resistance: 47 - 100 ohms
Product Introduction
1. UK alphasense Oxygen Sensor O2-G2 Product Description:
Oxygen sensor O2-G2,electrochemical gas sensor, small size. Typical applications include oxygen alarms, atmosphere analyzers, etc.
2. UK alphasense Oxygen Sensor O2-G2 Features:
(1) Operating Life: >2 years
(2) Dimensions (mm): Φ20.3×10.2mm
(3) Output: 30 - 42 μA @ 22°C, 20.9% O2
(4) Response Time t90 (seconds): <18S
(5) Weight: < 7g
(6) Temperature Range: -30 - 55℃
(7) Pressure Range: 80 - 120Kpa
(8) Humidity Range: 5 - 95%RH
(9) Storage Time: 6 months
(10) Load Resistance: 47 - 100 ohms
3. UK alphasense Oxygen Sensor O2-G2 Typical Applications
Typical applications include oxygen alarms, atmosphere analyzers, etc.
