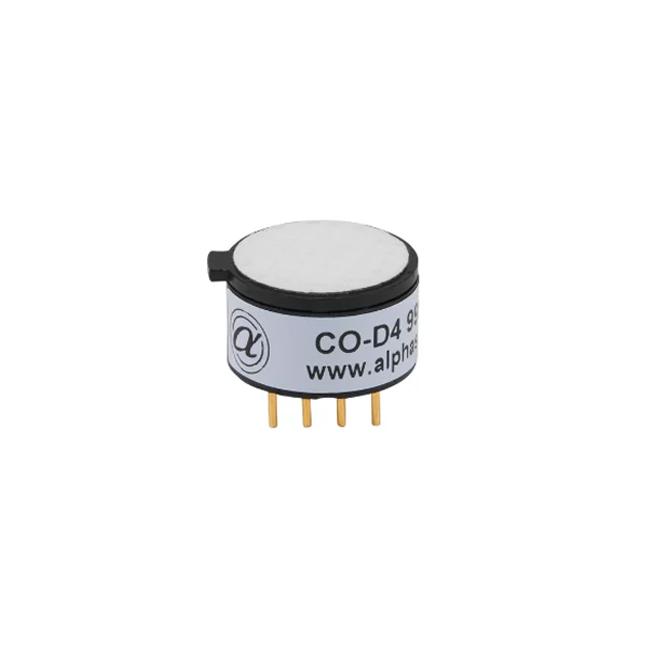

UK Alphasense electrochemical carbon monoxide sensor (CO sensor) - CO-D4
Measurement range: 1000ppm
Sensitivity: 30～48nA/ppm
Response time: < 25s
Linearity: +/-40ppm
Overload: 2000ppm
Resolution: 1.5ppm
Dimensions: Φ14.5×8.3
Service life: 2 years
Storage period: 6 months
Operating temperature: -20～50℃
Operating humidity: 15～90%RH
Load resistance: 10～47Ω
Product introduction
1. Electrochemical carbon monoxide sensor CO-D4 product description:
The electrochemical carbon monoxide sensor CO-D4 is mainly used to detect CO concentration in the air.
2. Electrochemical carbon monoxide sensor CO-D4 technical parameters:
Measurement range: 1000ppm
Sensitivity: 30～48nA/ppm
Response time: < 25s
Linearity: +/-40ppm
Overload: 2000ppm
Resolution: 1.5ppm
Dimensions: Φ14.5×8.3
Service life: 2 years
Storage period: 6 months
Operating temperature: -20～50℃
Operating humidity: 15～90%RH
Load resistance: 10～47Ω
