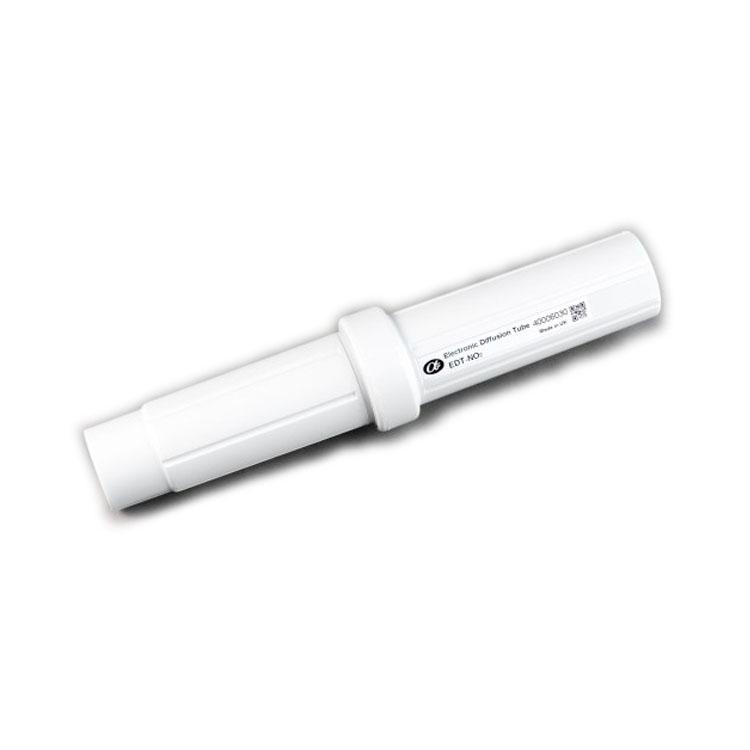

UK Alphasense Electronic Diffusion Tube Electrochemical Gas Sensor - EDT-01
Low cost makes deployment networks affordable
User-adjustable data collection time from one minute to four hours
Also records relative humidity and temperature
8-month battery life with two AA lithium batteries
Data download via Bluetooth or Android app
IP67
Can be mounted on walls or poles
Detectable gases include NO2, NO2+O3, H2S, and CO. Performance specifications are available in the sensor datasheet
Product Introduction
1.Electronic Diffusion TubeElectrochemical Gas Sensor EDT-01 Description:
Alphasense now offers a new solution to some old problems.
In urban air quality monitoring, Palmes-type diffusion tubes are commonly used for indicative NO2 detection. However, this method samples over several weeks and only provides an overall average concentration, with results reported only after weeks of sampling.
Odor gases previously ignored by local businesses and city councils are now urgent issues to address. The demand for monitoring thermal variations of odor gases near landfills, wastewater treatment plants, agricultural/poultry farms, and industrial sites is increasing, but the cost of deploying networks at these points is daunting. The two most commonly monitored gases in odor monitoring are H2S and NH3.
Alphasense introduces the Electronic Diffusion Tube (EDT): a single-gas data logger using Alphasense A4 series ppb-level electrochemical gas sensors.
2. Electronic Diffusion Tube Electrochemical Gas SensorEDT-01Features:
Low cost makes deployment networks affordable
User-adjustable data collection time from one minute to four hours
Also records relative humidity and temperature
8-month battery life with two AA lithium batteries
Data download via Bluetooth or Android app
IP67
Can be mounted on walls or poles
Detectable gases include NO2, NO2+O3, H2S, and CO. Performance specifications are available in the sensor datasheet for data analysis support
3. Electronic Diffusion TubeElectrochemical Gas SensorEDT-01 Applications:
Deploy alongside Palmes-type diffusion tubes to record diurnal and weeklytrends and peaks of monitoring targets.
Monitor urban construction sites for compliance, especially peak concentrations
Fence-line monitoring of odor gas sources for thermal mapping, with daily downloads providingregular feedback
Track ammonia heat maps on poultry farms
Monitor fugitive emissions at industrial sites, leak detection, and ensure compliance with relevantregulations
Low-cost educational tool for teaching air quality
4. Electronic Diffusion Tube Electrochemical Gas Sensor EDT-01 Specifications:
| Performance Specifications |
||
| Measurement Range |
ppm (NO2 ) |
0-5 |
|
|
ppm (H2S) |
0-50 |
|
|
ppm (CO) |
0-500 |
|
|
ppm (NH3) |
0-100 |
| Temperature Range |
C |
-20 to +50 |
| Humidity Range |
%rh |
10~90 continuous |
| Temperature Accuracy |
-20 to +50C |
±0.5C |
| Sampling Time |
min |
1 to 256 |
| Data Storage Capacity |
Number of Stored Data Points |
44,000 |
| Storage Temperature |
-40–100 |
°C |
| Power (Battery) |
2 x LiSOCl 14500 (AA) |
8 months continuous use |
| Supply Voltage |
V |
3.75 (nominal) |
| Communication |
Bluetooth Low Energy |
Data download within 5-10 meters |
| EDT Dimensions |
mm |
25 dia x 170 |
| EDT Weight |
g |
<150 |
| Mounting Bracket Dimensions |
mm |
60 x 250 |
| Mounting Bracket Weight |
g |
|
