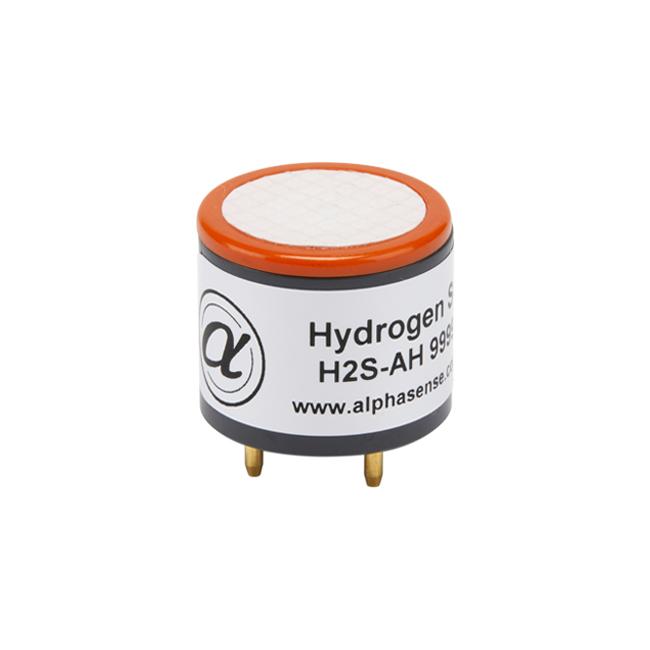

UK alphasense hydrogen sulfide sensor (high current H2S sensor) - H2S-AH
Measurement range: 50ppm
Sensitivity: 950～1400nA/ppm
Response time: < 25s
Linear range: -2.5ppm
Overload: 250ppm
Resolution: 0.03ppm
Dimensions: Φ20.2*16.5
Service Life: 2 years
Storage Period: 6 months
Operating Temperature: -30～50℃
Operating Humidity: 15～90% RH
Load Resistance: 10～47Ω
Product Introduction
I.Hydrogen sulfide sensor(High current H2S sensor) H2S-AH product description:
The main features of the hydrogen sulfide sensor H2S-AH are a two-year lifespan and high current output; typically used in portable hydrogen sulfide detectors.
2. Main parameters of the hydrogen sulfide sensor (high current H2S sensor) H2S-AH
Measurement range: 50ppm
Sensitivity: 950～1400nA/ppm
Response time: < 25s
Linear range: -2.5ppm
Overload: 250ppm
Resolution: 0.03ppm
Dimensions: Φ20.2*16.5
Service Life: 2 years
Storage Period: 6 months
Operating Temperature: -30～50℃
Operating Humidity: 15～90% RH
Load Resistance: 10～47Ω
