Product Introduction

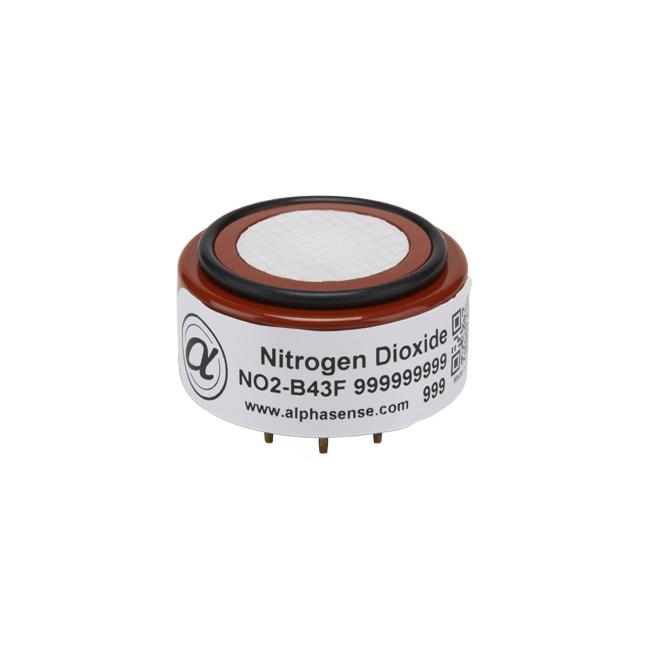

1. Description of Nitrogen Dioxide Sensor (NO2 Sensor) 4-Electrode NO2-B43F NO2-B43F+:
2. Features of Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F:
High Resolution
Good Linearity
High Accuracy
Stable Performance
3. Typical Applications of Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
Ambient air quality trace nitrogen dioxide monitoring, nitrogen dioxide gas transmitters.

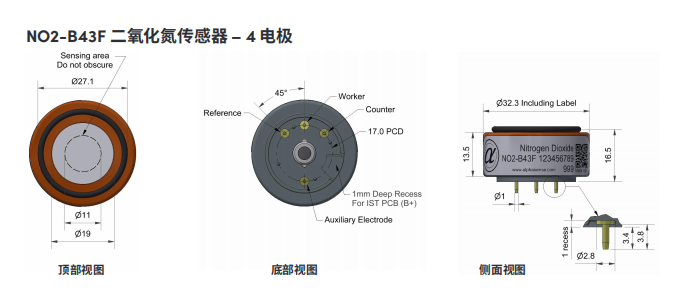

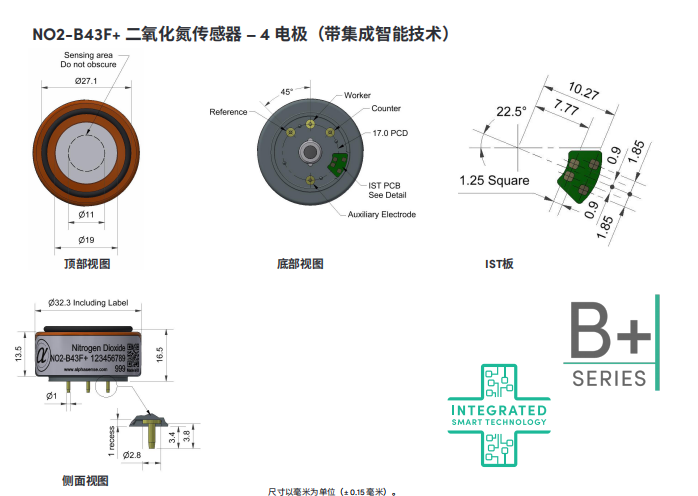

Dimensions of Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F NO2-B43F+:
4. Performance of High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
| Sensitivity | Sensitivity in 2ppm NO2 (nA/ppm) | -200~-650 |
| Response Time | t90 time from zero to 2ppm NO2 (s) | <80 |
| Zero Current | Output in zero-grade air at 20°C (nA) | -80~+80 |
| Noise* | Standard deviation ±2 (equivalent ppb) | 15 |
| Range | Measurement limit ensuring product performance (ppm) | 20 |
| Linearity | ppb error of full-scale, linear from 0 to 5ppm | <±0.5 |
| Overload | Maximum ppm for stable response to gas pulses | 50 |
5. Lifetime of High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
| Zero Drift | Equivalent ppb change per year in laboratory air | 0~20 |
| Sensitivity Drift | Percentage change per year in laboratory air, monthly test | <-20~-40 |
| Operating Life | Months until output drops to 50% of original signal (24-month warranty) | >24 |
6. Environment of High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
| Sensitivity at -20°C | At 2ppm NO2, (output at -20°C / output at 20°C) % | 60~80 |
| Sensitivity at 40°C | At 2ppm NO2, (output at 40°C / output at 20°C) % | 95~115 |
| Zero at -20°C | nA | 0~25 |
| Zero at 40°C | nA | -10~50 |
7. Cross-Sensitivity of High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
| O3 | Filtering capacity at 0.5ppm O3 (ppm·hr) | <500 |
| H2S | Sensitivity percentage to measured gas at 5ppm H2S | <-80 |
| NO | Sensitivity percentage to measured gas at 5ppm NO | <5 |
| Cl2 | Sensitivity percentage to measured gas at 5ppm Cl2 | <100 |
| SO2 | Sensitivity percentage to measured gas at 5ppm SO2 | <-3 |
| CO | Sensitivity percentage to measured gas at 5ppm CO | <-3 |
| H2 | Sensitivity percentage to measured gas at 100ppm H2 | <0.1 |
| C2H4 | Sensitivity percentage to measured gas at 100ppm C2H4 | <0.1 |
| NH3 | Sensitivity percentage to measured gas at 20ppm NH3 | <0.1 |
| CO2 | Sensitivity percentage to measured gas at 5% Vol CO2 | <0.1 |
| Halothane | Sensitivity percentage to measured gas at 100ppm Halothane | nd |
8. Key Parameters of High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F
| Temperature Range | ℃ | -30~40 |
| Pressure Range | kPa | 80~120 |
| Humidity Range | Continuous Relative Humidity Percentage | 15~85 |
| Storage Life | Storage months at 3~20°C (must be stored in sealed can) | 6 |
| Load Resistor | Ω (ISB circuit board recommended) | 33~100 |

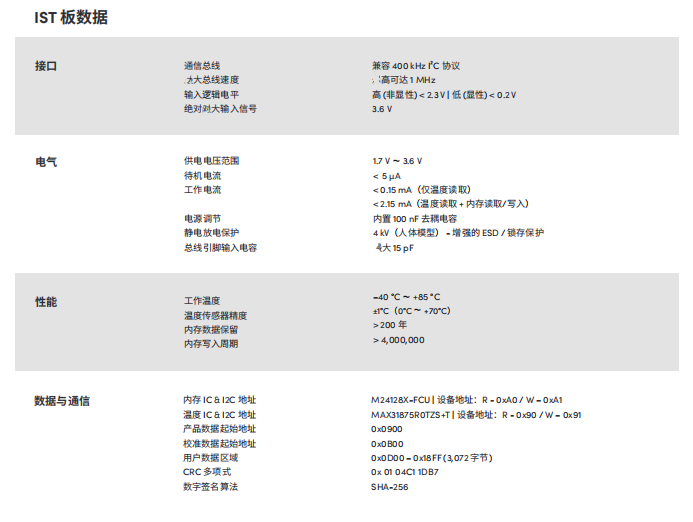

Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F NO2-B43F+ IST Board Data:
9. Matching Sensor Board for High-Resolution Nitrogen Dioxide Sensor (NO2 Sensor) NO2-B43F:
Unique Sensor Board (ISB) Alphasense B4 4-Electrode Gas Sensor - ISB
This unique sensor board (ISB) is used for Alphasense B4 series 4-electrode gas sensors. The regulator provides dual-channel voltage output.
The low-noise bandgap provides bias voltage to NO sensors, while the ISB can measure oxidizing (CO, H2S, SO2, and NO) and reducing (O3 and NO2) gases.
The ISB is configured in four versions for specific sensors: NO, NO2, O3, and CO/H2S/SO2.
