Product Introduction

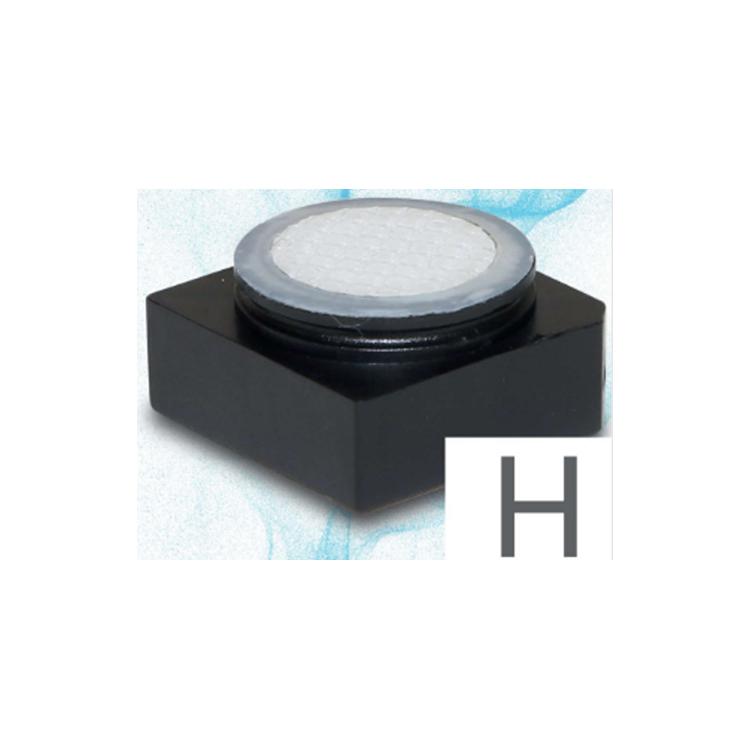

UK Alphasense CL2 Electrochemical Chlorine Gas Sensor Miniature Sensor CL2-H4 Description:
The electrochemical chlorine gas sensor - CL2-H4 operates on electrochemical principles. It features a low-profile design to minimize instrument height, which also simplifies the access of target gas to the sensor surface. It offers high sensitivity, good selectivity, and can filter dust and small water droplets. It provides excellent linearity at low concentrations, good stability, and resistance to interference from CO, C2H4, H2, and NH3. The range is 0~20ppm, operating environment is -20~50℃, 15~90%RH, resolution is 0.1ppm. It is mainly used in wastewater treatment, toxic gas measurement in industrial environments, petrochemical and other industrial fields.
UK Alphasense CL2 Electrochemical Chlorine Gas Sensor Miniature Sensor CL2-H4 Features:
Electrochemical working principle
Series 1 size
Range 0~20ppm
Linear output
Resistance to interference from CO, H2, C2H4, NH3, CO2
UK Alphasense CL2 Electrochemical Chlorine Gas Sensor Miniature Sensor CL2-H4 Parameters:
| Measurement Range |
0-20ppm |
| Sensitivity |
-150~-350nA/ppm |
| Response Time |
< 35s |
| Full Scale Linearity Error |
+0.5ppm |
| Overload |
60ppm |
| Resolution |
< 0.1ppm |
| Dimensions |
20*20*10.2 |
| Service Life |
2 years |
| Storage Period |
6 months |
| Operating Temperature |
-20~ 50°C |
| Operating Humidity |
15~90%RH |
| Load Resistance |
330 |

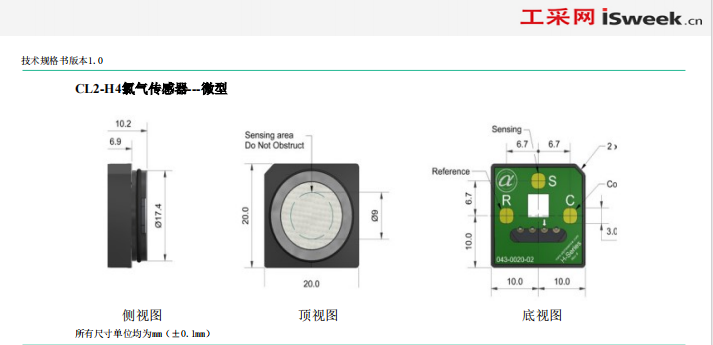

UK Alphasense CL2 Electrochemical Chlorine Gas Sensor Miniature Sensor CL2-H4 Dimensions:
