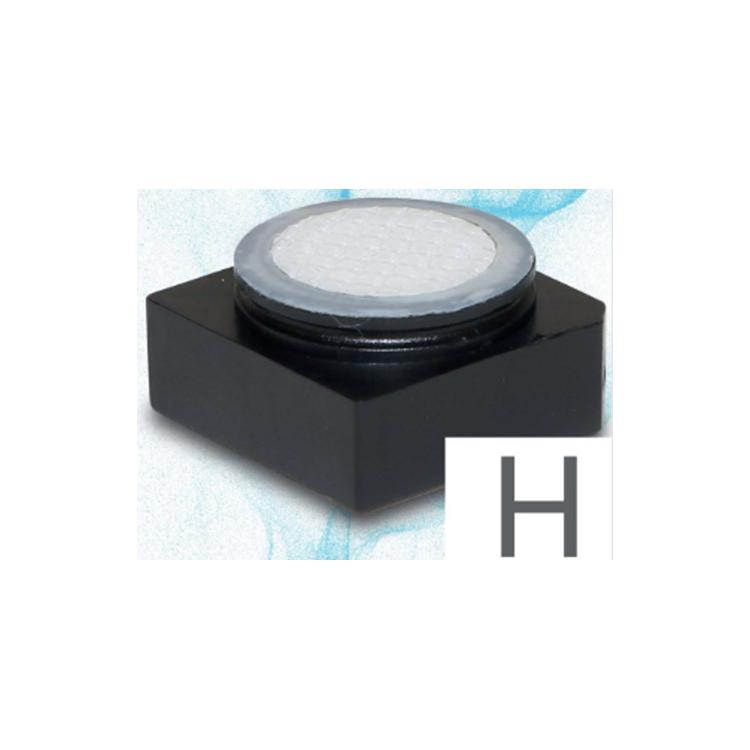

UK Alphasense H2S Hydrogen Sulfide Sensor Electrochemical Miniature - H2S-H4
Electrochemical Principle
Small Size Miniature
Model: H2S-H4
Product Introduction
UK Alphasense H2S Hydrogen Sulfide Sensor Electrochemical Miniature H2S-H4 Parameters:
| Measurement Range |
0-100ppm |
| Sensitivity |
110~170nA/ppm |
| Response Time |
< 25s |
| Linearity Error (Full Scale) |
+6ppm |
| Overload |
200ppm |
| Resolution |
< 0.2ppm |
| Dimensions |
20*20*10.2 |
| Service Life |
2 years |
| Storage Period |
6 months |
| Operating Temperature |
-20~50°C |
| Operating Humidity |
15~90%RH |
| Load Resistance |
10~470 |

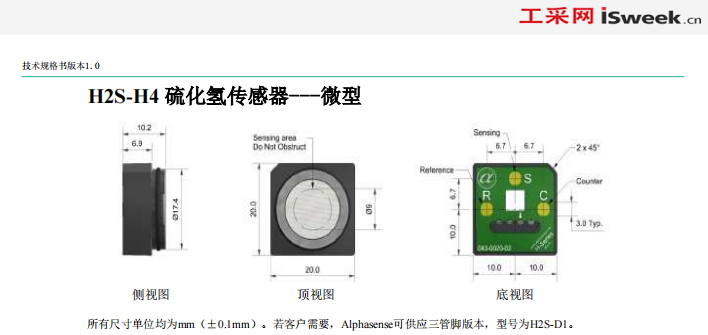

UK Alphasense H2S Hydrogen Sulfide Sensor Electrochemical Miniature H2S-H4 Dimensions:
