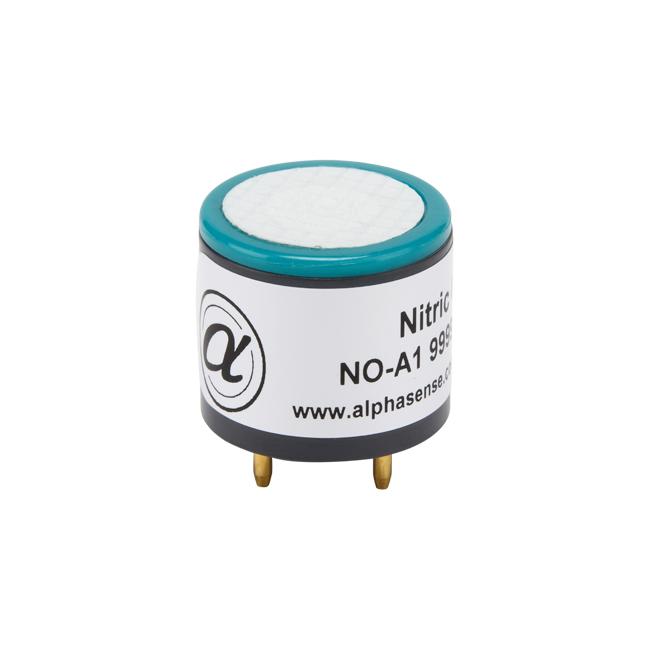

UK Alphasense Nitric Oxide Sensor (NO Sensor) - NO-A1
Sensitivity: 320-480nA/ppm
Response Time: < 45s
Linearity Range: +15 ~ +25
Overload: 800ppm
Resolution: 0.2ppm
Dimensions: Φ20.2*16.5
Service Life: 2 years
Storage Period: 6 months
Operating Temperature: -30～50℃
Operating Humidity: 15～90％RH
Load Resistance: 10～47Ω
Bias Voltage: +300mV
Model: NO-A1
Product Introduction
1. Product Description of Nitric Oxide Sensor (NO Sensor) NO-A1:
The Nitric Oxide Sensor NO-A1 is mainly used for automotive exhaust detection, industrial toxic gas detection, and various other nitric oxide detection applications.
2.Features of Nitric Oxide Sensor (NO Sensor) NO-A1:
- Electrochemical principle
- High sensitivity
- Analog current linear output
- Bias voltage of 300mV
- Resistant to interference from CO, H2, CO2, NH3
3.Parameters of Nitric Oxide Sensor (NO Sensor) NO-A1:
| Sensitivity |
320-480nA/ppm |
| Response Time | < 45s |
| Linearity Range |
+15 ~ +25 |
| Overload |
800ppm |
| Resolution |
0.2ppm |
| Dimensions |
Φ20.2*16.5 |
| Service Life |
2 years |
| Storage Period |
6 months |
| Operating Temperature |
-30～50℃ |
| Operating Humidity |
15～90％RH |
| Load Resistance |
10～47Ω |
| Bias Voltage |
+300mV |
