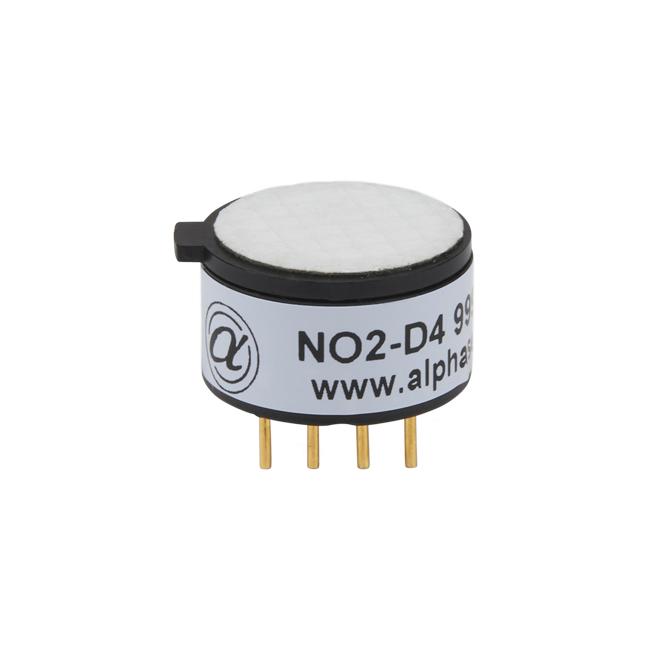

UK Alphasense Nitrogen Dioxide Sensor (NO2 Sensor) - NO2-D4
Measurement Range: 20ppm
Sensitivity: -250～-450nA/ppm
Response Time: < 25s
Linearity Range: -0.6ppm
Overload: 60ppm
Resolution: 0.1ppm
Dimensions: Φ14.5*8.3
Service Life: 2 years; Storage Period: 6 months
Operating Temperature: -20～50℃
Operating Humidity: 15～90%RH
Load Resistance: 33Ω
Product Introduction
1. Description of Nitrogen Dioxide Sensor NO2-D4:
The nitrogen dioxide sensor NO2-D4 is mainly used to detect the concentration of nitrogen dioxide in the atmosphere, applied in portable nitrogen dioxide monitors and other applications.
2. Main Parameters of Nitrogen Dioxide Sensor NO2-D4
Measurement Range: 20ppm
Sensitivity: -250～-450nA/ppm
Response Time: < 25s
Linearity Range: -0.6ppm
Overload: 60ppm
Resolution: 0.1ppm
Dimensions: Φ14.5*8.3
Service Life: 2 years
Storage Period: 6 months
Operating Temperature: -20～50℃
Operating Humidity: 15～90%RH
Load Resistance: 33Ω
