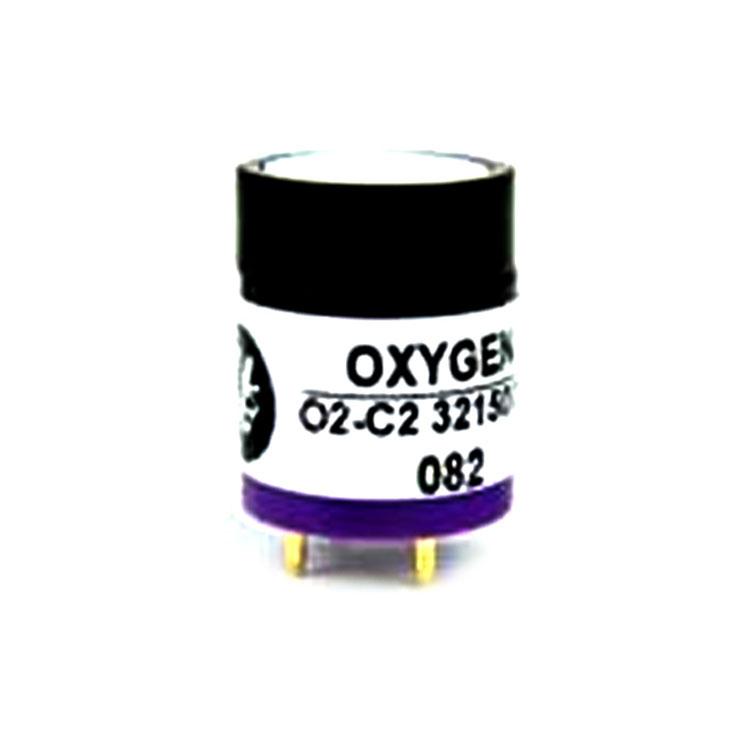

UK Alphasense electrochemical oxygen sensor (O2 sensor) - O2-C2
(1) Oxygen sensor measurement range (%): 0-30
(2) Operating life: > 2 years
(3) Dimensions (mm): Φ20.3×23mm
(4) Output: 80 - 120 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): < 45S
(6) Linearity (ppm): -0.6 linearity error at full scale (zero, 400ppm)
(7) Weight: < 18g
(8) Temperature range: -30 - 55℃
(9) Pressure range: 80 - 120Kpa
(10) Humidity range: 5 - 95%RH
(11) Storage time: 6 months
(12) Load resistance: 47 - 100 ohms
Product introduction
Electrochemical oxygen sensor O2-C2 product description:
Electrochemical oxygen sensorO2-C2 is mainly used in oxygen alarms and atmosphere analyzers.
Electrochemical oxygen sensor O2-C2 features:
(1) Oxygen sensor measurement range (%): 0-30
(2) Operating life: > 2 years
(3) Dimensions (mm): Φ20.3×23mm
(4) Output: 80 - 120 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): < 45S
(6) Linearity (ppm): -0.6 linearity error at full scale (zero, 400ppm)
(7) Weight: < 18g
(8) Temperature range: -30 - 55℃
(9) Pressure range: 80 - 120Kpa
(10) Humidity range: 5 - 95%RH
(11) Storage time: 6 months
(12) Load resistance: 47 - 100 ohms
