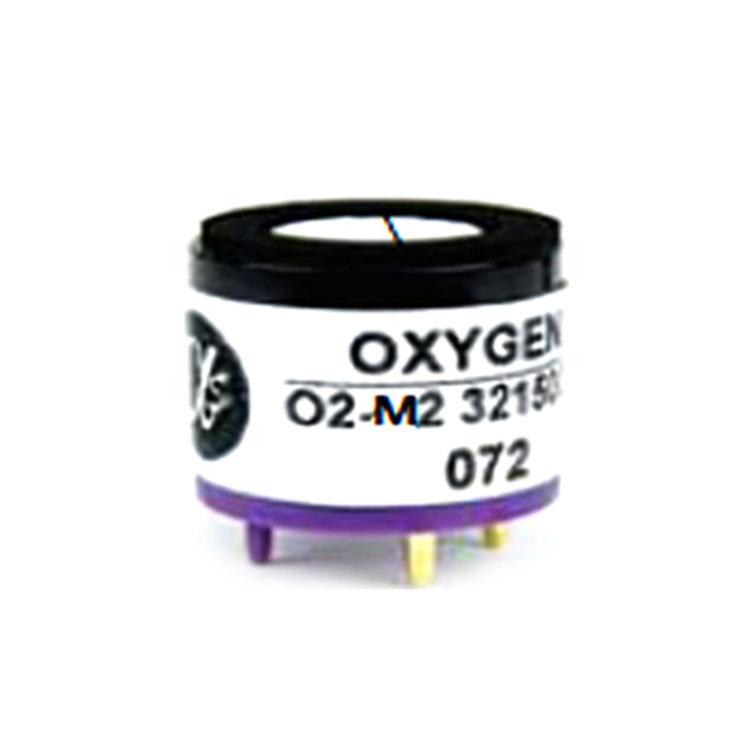

I. Electrochemical Oxygen Sensor (O2 Sensor)O2-M2Product Description:
Oxygen Sensor(O2 Sensor)(O2-M2) is an electrochemical oxygen sensor, commonly known as an oxygen battery, with a 4-series size and a 2-year service life. It is mainly used to measure oxygen gas concentration in the environment, widely applied in coal mines, steel, petrochemical, medical, tunnel, etc. Typical applications include oxygen alarms and oxygen analyzers.
II. ElectrochemicalOxygen Sensor (O2 Sensor)O2-M2Features:
| Oxygen sensor measurement range (%): | 0-30 |
| Operating life: | >24 months to 85% of initial signal |
| Dimensions (mm): | Φ20.3×16.8mm |
| Output: | 80-120μA@22°C,20.9%O2 |
| Response time t90 (seconds): | <15 from 20.9% to 0 (load 47Ω) |
| Linearity (ppm): | <0.6 linearity error at full scale (zero, 400ppm) |
| Weight: | <16g |
| Temperature range: | -30~55℃ |
| Pressure range: | 80-120Kpa |
| Humidity range: | 5~95%RH |
| Storage time: | 6 months (storage temperature 3~20°C) |
| Load resistance: | 47-100 ohms |
III. ElectrochemicalOxygen Sensor (O2 Sensor)O2-M2Application Scope:
Oxygen sensors are widely used in coal mines, steel, petrochemical, medical, tunnels, etc.
IV. ElectrochemicalOxygen Sensor (O2 Sensor)O2-M2Typical Applications:
Oxygen alarms, oxygen analyzers.
