Product Introduction

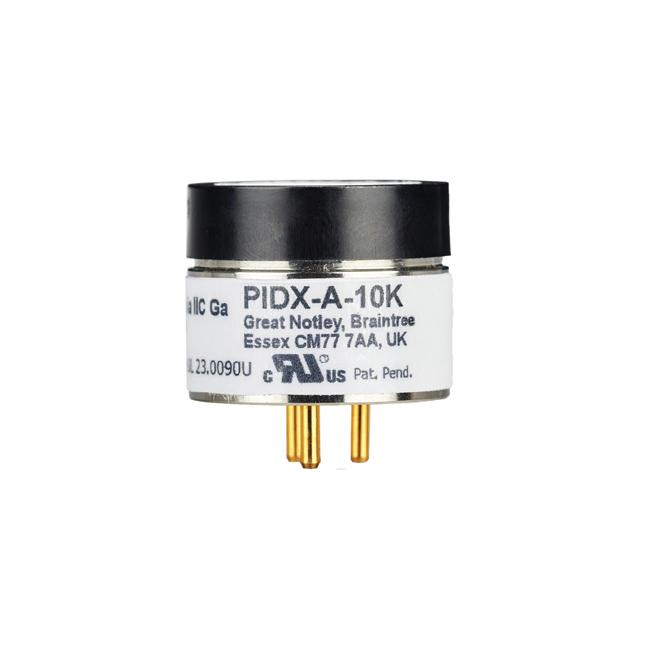

UK Alphasense VOC Photoionization Sensor Advanced PID Sensor (0-10000ppm) – PIDX-A-10K Description:
The new PIDX sensor unlocks powerful functionality for precise measurement of volatile organic compounds (VOCs). Designed for demanding applications, the PIDX sensor demonstrates excellent stability, sensor-to-sensor repeatability, and low power consumption.
The PIDX series sensors are developed for professional, demanding applications. They achieve a tenfold improvement in sensor-to-sensor repeatability, consistent temperature response, stable baseline over a wide humidity range, and low power consumption and operating voltage. In addition to intrinsic safety ratings, the PIDX series also features on-board fault detection, ensuring a fault reading is issued when an error is detected, preventing users from being in an unsafe state. Enabling faster integration without workarounds, it is an accurate and very easy-to-use sensor for all applications on the market. PIDX sensors have ATEX, UKEX, UL24, xRUus ratings for use in hazardous areas. For professional, demanding applications requiring advanced features such as excellent accuracy, sensor-to-sensor repeatability, and on-board fault detection, the PIDX series is an excellent choice.
Enhanced sensor-to-sensor repeatability, true plug-and-play integration.
Stable data over a wide operating temperature and humidity range.
Low concentration detection range for outdoor air quality monitoring.
UK Alphasense VOC Photoionization SensorAdvanced PID Sensor (0-10000ppm) – PIDX-A-10K Features:
Unrestricted applications
• Industrial hygiene & safety
• Ambient air quality
• Fence line monitoring
Easy integration
• Intrinsically safe
• Compatible with 4P platform format
• Internal voltage regulation
High performance
• Stable baseline under temperature and humidity variations
• High sensor-to-sensor repeatability
• Easy cleaning and field maintenance
UK Alphasense VOC Photoionization SensorAdvanced PID Sensor (0-10000ppm) – PIDX-A-10K Applications:
In portable and fixed gas detectors
Confined space monitors
Environmental monitoring equipment

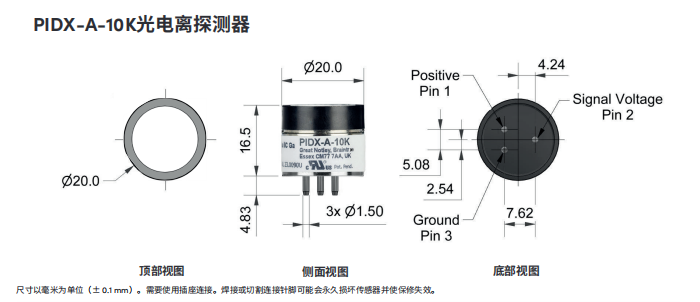

UK Alphasense VOC Photoionization SensorAdvanced PID Sensor (0-10000ppm) – PIDX-A-10K Dimensions:

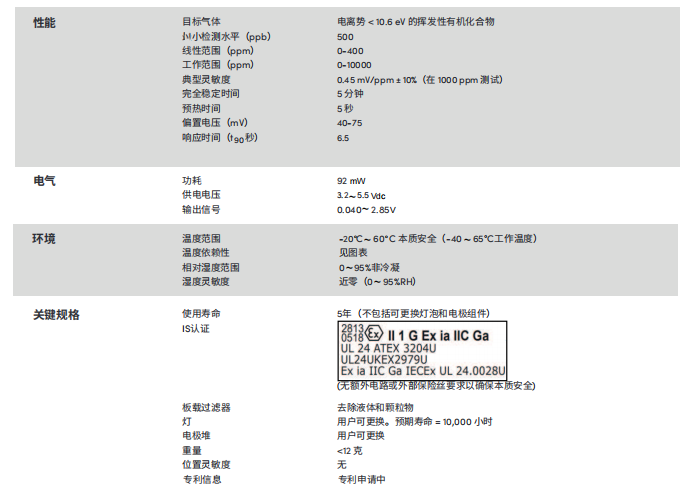

UK Alphasense VOC Photoionization SensorAdvanced PID Sensor (0-10000ppm) – PIDX-A-10KParameters:
