Product Introduction

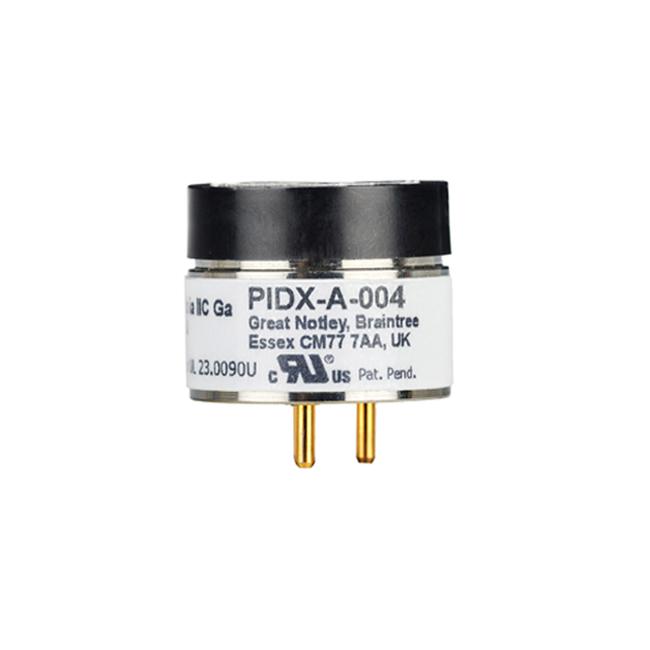

UK Alphasense VOC Photoionization SensorAdvanced PID Sensor (0-4ppm) – PIDX-A-004 Description:
The new PIDX sensor unlocks powerful capabilities for precise measurement of volatile organic compounds (VOCs). Designed for demanding applications, the PIDX sensor delivers excellent stability, sensor-to-sensor repeatability, and low power consumption.
The PIDX series is developed for professional, demanding applications. It achieves a tenfold improvement in sensor-to-sensor repeatability, consistent temperature response, stable baseline across a wide humidity range, and low power and operating voltage. In addition to intrinsic safety ratings, the PIDX series features on-board fault detection, ensuring a fault reading is issued when an error is detected, preventing users from being in unsafe conditions. Enabling faster integration without workarounds, it is an accurate and highly usable sensor for all applications on the market. The PIDX sensor has ATEX, UKEX, UL24, and xRUus ratings for use in hazardous areas. For professional, demanding applications requiring superior accuracy, sensor-to-sensor repeatability, and advanced features such as on-board fault detection, the PIDX series is an excellent choice.
Enhanced sensor-to-sensor repeatability, true plug-and-play integration.
Stable data over a wide operating range of temperature and humidity.
Low concentration detection range for outdoor air quality monitoring.
UK Alphasense VOC Photoionization SensorAdvanced PID Sensor（0-4ppm）– PIDX-A-004Features:
Unrestricted Applications
• Industrial Hygiene & Safety
• Ambient Air Quality
• Fenceline Monitoring
Easy Integration
• Intrinsically Safe
• Compatible with 4P Platform Format
• Internal Voltage Regulation
High Performance
• Stable Baseline Under Temperature and Humidity Variations
• High Sensor-to-Sensor Repeatability
• Easy Cleaning and Field Maintenance
UK Alphasense VOC Photoionization SensorAdvanced PID Sensor（0-4ppm）– PIDX-A-004Applications:
In Portable and Fixed Gas Detectors
Confined Space Monitors
Environmental Monitoring Equipment

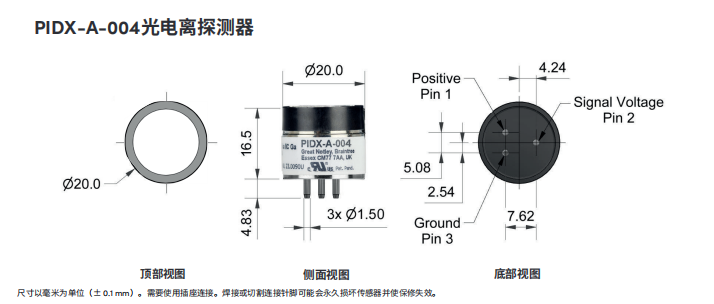

UK Alphasense VOC Photoionization SensorAdvanced PID Sensor（0-4ppm）– PIDX-A-004Dimensions:

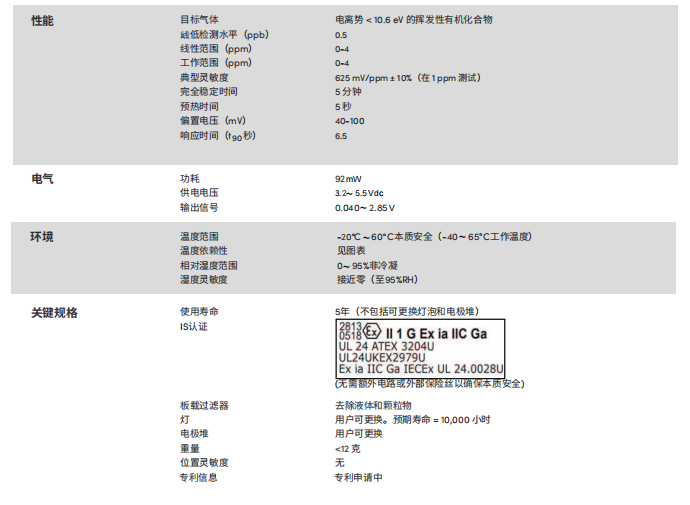

UK Alphasense VOC Photoionization SensorAdvanced PID Sensor(0-4ppm) – PIDX-A-004 Parameters:
