1. Introduction to PID sensor/TVOC sensor PID-A1:

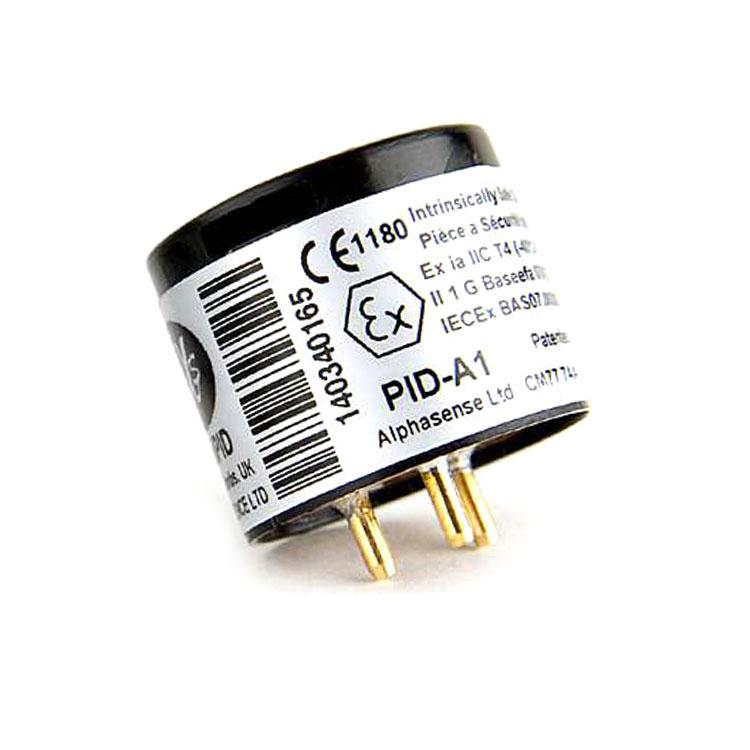

The PID gas sensor PID-A1 is a wide-rangePID sensor, a dedicated gas sensor for VOC detection, capable of detecting up to 6000 ppm of VOC gases. It features a 4-series size, making it highly suitable for industrial applications such as chemical and petroleum industries.
2. Main features of PID sensor/TVOC sensor PID-A1:
1. A-series standard size with miniature focusing light source.
2. Linear range: 300 ppm
3. Operating environment: -40~55°C, relative humidity 0-95%
4. Supply voltage: 3.2-3.6V (regulator not used); 3.2-10.0V (regulator used)
5. Output voltage: zero point (>50 mV) to Vmax (supply voltage -0.1V @ regulator used)
6. Power consumption: 90mW (3.3V supply)
7. Overload: 6000 ppm (reference isobutylene)
8. Response time less than 3 seconds under free diffusion
9. Service life greater than 5 years (excluding UV lamp and grid)
10. A-series standard size pins
3. Applications of PID sensor/TVOC sensor PID-A1
Highly suitable for industrial applications such as chemical and petroleum industries
4. Performance of PID sensor/TVOC sensor PID-A1
| Target gas | VOC gases with ionization constant <10.6eV | |
| Detection value | (PPB isobutylene) | <50 |
| Linear range | (PPM isobutylene) (5% deviation) | 300 |
| Range | (PPM isobutylene) | 6000 |
| Sensitivity | (linear range) (mV/ppm isobutylene) | >0.3 |
| Stabilization time | (minutes 100ppb) | 20 |
| Warm-up time | (seconds) full-scale operation time | 5 |
| Bias voltage | （mV） | 50~59 |
| Response time | (seconds) free diffusion | <3 |
5. Electrical characteristics of PID sensor/TVOC sensor PID-A1
| Power consumption | 85mW (typical) at 3.2V, transient power 350mW for 200mS on |
| 90mW at 3.3V, transient power 460mW for 200mS on | |
| Supply | 3.2~3.6 with ±0.01V (board disabled) 3.6~10 with (board enabled) |
| (10V for IS certification, 18V for non-IS certification) | |
| Output signal | Vmax=Vsupply-0.1V |
| Expected life | 5 years (excluding bulb and electrode cap) |
6. Operating environment of PID sensor/TVOC sensor PID-A1
| Temperature range | -40°C to +55°C (intrinsically safe); -40°C to +65°C (non-intrinsically safe) |
| Temperature dependence | 0°C to 40°C, 90%~100% at 20°C; -20°C 140% at 20°C |
| Humidity range | Non-condensing 0~95% RH |
| Humidity sensitivity | 0~75% RH transient near zero |
