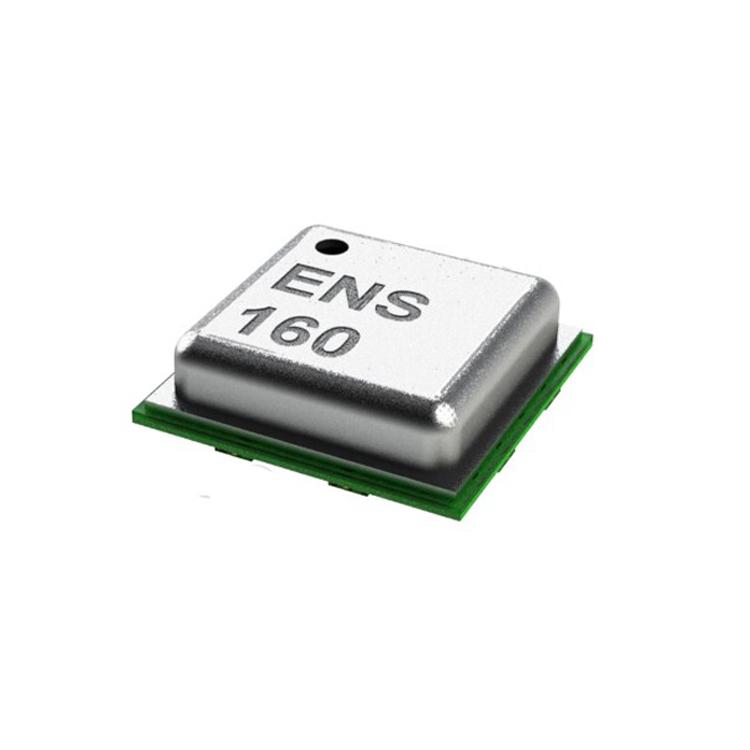

AMS Digital Metal Oxide Multi-Gas Sensor - ENS160

AMS Digital Metal Oxide Multi-Gas Sensor ENS160 Description:

ENS160 is a digital metal oxide multi-gas sensor solution based on metal oxide (MOX) technology and 4 MOX sensor elements. Each sensor element has independent hotplate control to detect multiple gases, including volatile organic compounds (VOCs) such as ethanol, toluene, hydrogen, and nitrogen dioxide, with excellent selectivity and accuracy. For indoor air quality applications, ENS160 supports smart algorithms to digitally process raw sensor measurements on-chip. These algorithms calculate CO2 equivalents, TVOC, and different air quality indices (AQIs), and perform humidity and temperature compensation as well as baseline management – all on-chip! Additionally, development options are available for digital output of raw sensor measurements for each sensor element for customization. The LGA package device includes an SPI or I2C slave interface with independent VDDIO for direct communication with the main processor. ENS160 is a mature, maintenance-free technology designed for high volume and high reliability.

AMS Digital Metal Oxide Multi-Gas Sensor ENS160 Features:

Small size - 3 x 3 x 0.9mm LGA package

Design flexibility, standard and fast modes, plus I2C and SPI interfaces, and independent VDDIO up to 3.6V

T&R packaging, reflow solderable

AMS Digital Metal Oxide Multi-Gas Sensor ENS160 Key Features & Benefits:

True VOC air quality detection with excellent industrial purity and stability, providing multiple outputs compliant with IAQ2 signal standards, such as eCO2 and TVOC.

Independent sensor heating control, high selectivity (e.g., ethanol, toluene, and acetone) and excellent background discrimination.

Humidity immunity

Trouble-free on-chip heating drive control and data processing – no external libraries, no host CPU performance impact.

Interrupt on threshold for low-power applications

Wide operating range: Temperature: -40 ~ +85°C; Humidity: 5 ~ 95%; VDD: 1.71 ~ 1.98V; VDDIO 1.71 ~ 3.6V

AMS Digital Metal Oxide Multi-Gas Sensor ENS160 Applications:

Building automation / Smart home / HVAC

Indoor air quality detection

Demand-controlled ventilation

Smart thermostats

Home appliances

Range hoods

Air filters/purifiers

Mobile communications / Wearable devices

IoT devices
