Product Introduction

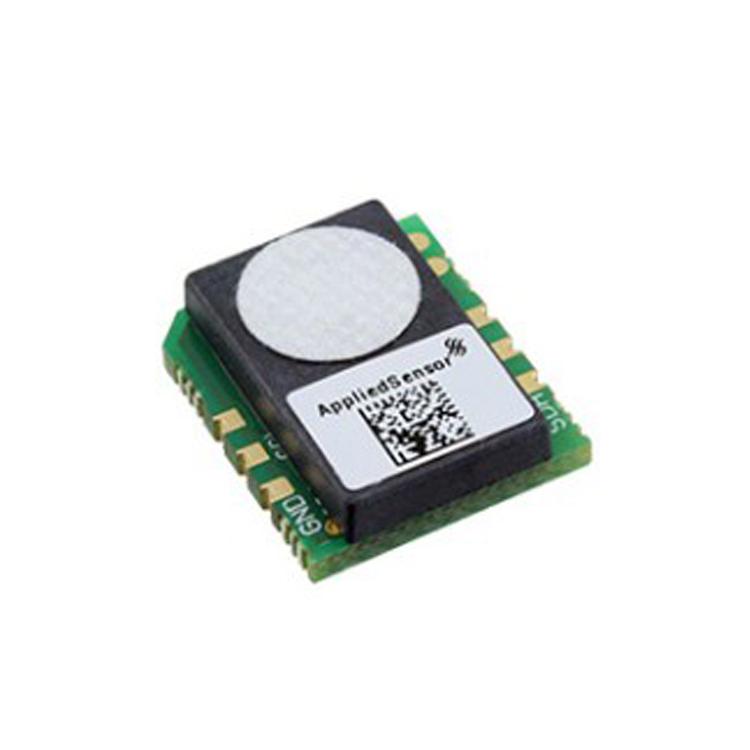

Austrian AMS Air Quality VOC SensorIAQ-core Description:
The iAQ-core is a compact, highly sensitive sensor product for air quality detection. It uses micro-electromechanical systems (MEMS) metal oxide semiconductor (MOS) technology.It can detect multiple gases and directly outputs digital VOC and CO2 concentration values.
It can detect alcohols, aldehydes, aliphatic hydrocarbons, organic amines, aromatic hydrocarbons, carbon monoxide (CO), methane (CH4), liquefied petroleum gas (LPG), ketones, organic acids, and other basic substances.
Austrian AMS Air Quality VOC SensorIAQ-coreFeatures:
It can detect multiple gases and directly outputs digital VOC and CO2 concentration values.
High sensitivity, fast response
Measurement cycle: 1ms (pulse mode), 11ms (continuous mode)
Long lifespan: proven over 10 years
Low power consumption: from 9mW (pulse mode) to 67mW (continuous mode)
Compact size: easy installation, PCB dimensions (approx.) 15.24x17.78mm
Austrian AMS Air Quality VOC SensorIAQ-coreWorking Principle:
A platinum heater and interdigital electrode structure are placed on a silicon nitride membrane about one micron thick. By heating, the proportion of VOC in the surrounding air is analyzed and converted to CO2 PPM / TVOC PPB output.
Austrian AMS Air Quality VOC SensorIAQ-coreApplications:
Smart Home
IoT
HVAC
Thermostats
