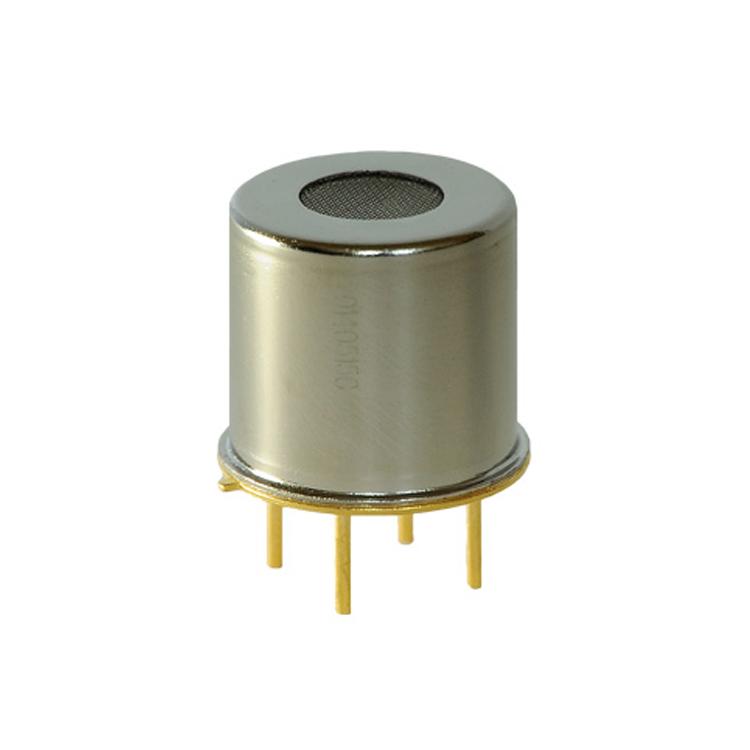

Austria SENSORE zirconia oxygen sensor for oxygen concentrators, glove boxes, 3D printing, and air separation equipment - SO-E2-960

I. Working principle of the zirconia oxygen sensor SO-E2-960 for oxygen concentrators:

BecauseSince the charge carriers in the zirconia electrolyte are oxygen ions, when a voltage is applied to the zirconia electrolytic cell, oxygen is pumped through the zirconia disc to the anode. If a perforated cap is placed on the cathode of the cell, the flow of oxygen to the cathode the rate at the electrode will be limited. Due to this rate limitation, as the applied voltage gradually increases, the current in the electrolytic cell will reach saturation. This saturation current is called the limiting current, which is proportional to the oxygen concentration in the surrounding environment. proportional to the degree.



II. Zirconia oxygen sensor SO-E2-960 for oxygen concentratorsApplications:
Medical: oxygen concentrators, Thermostat chambers, oxygen concentrators
Laboratory: inert gas processing cabinets (glove boxes), bacterial incubators
Food industry: packaging, food inspection, Monitoring fruit ripening process(Storage/Transport)

Home/Cooking: automated baking/Baking (high temperature>100℃）

Measurement technique: fixed/Portable oxygen measuring instruments, Measurement with controlled oxygen content, air conditioning and circulation

Safety technology/Monitoring: fire protection (nitrogen enrichment, e.g., server rooms), greenhouses, wine cellars, gas storage, refineries, diving, fermentation units

Electrical industry: inert gas processors and cabinets, Inert gas welding monitoring, Storage under nitrogen enrichment (anti-oxidation), drying equipment, nitrogen concentrators, exhaust gas measurement

III. Zirconia oxygen sensor SO-E2-960 for oxygen concentratorsAdvantages of the oxygen sensor:
Wide measuring range,1%~96%Oxygen
High Precision
Multiple models exhibit linear characteristics
Small dependence of sensor signal on temperature
Low cross-sensitivity
Long service life
In most cases, only a“Single-point calibration”

IV. Zirconia oxygen sensor SO-E2-960 for oxygen concentratorsCharacteristic data:

Measuring gas	Oxygen
Measurement medium	Gas
Measurement principle	Limiting current type sensor
Measurement Range	1%~96%
Response time (t90)	2~25 seconds (depending on sensor type, gas flow rate, and measuring chamber)
Sensor voltage	0.7~1.6 volts
Heating Voltage	3.6~4.4 volts
Power consumption	1.3~1.8 watts (depending on application and packaging)
Cold resistance	R(25°C)=3.25Ω±0.20Ω
Preheating Time	At least 30s
工作温度	350℃ depending on cable and filter assembly
Allowable flow rate [ml/min]	100~500 (250 optimal)
Lifetime (MTTF)	20,000 hours (*)
