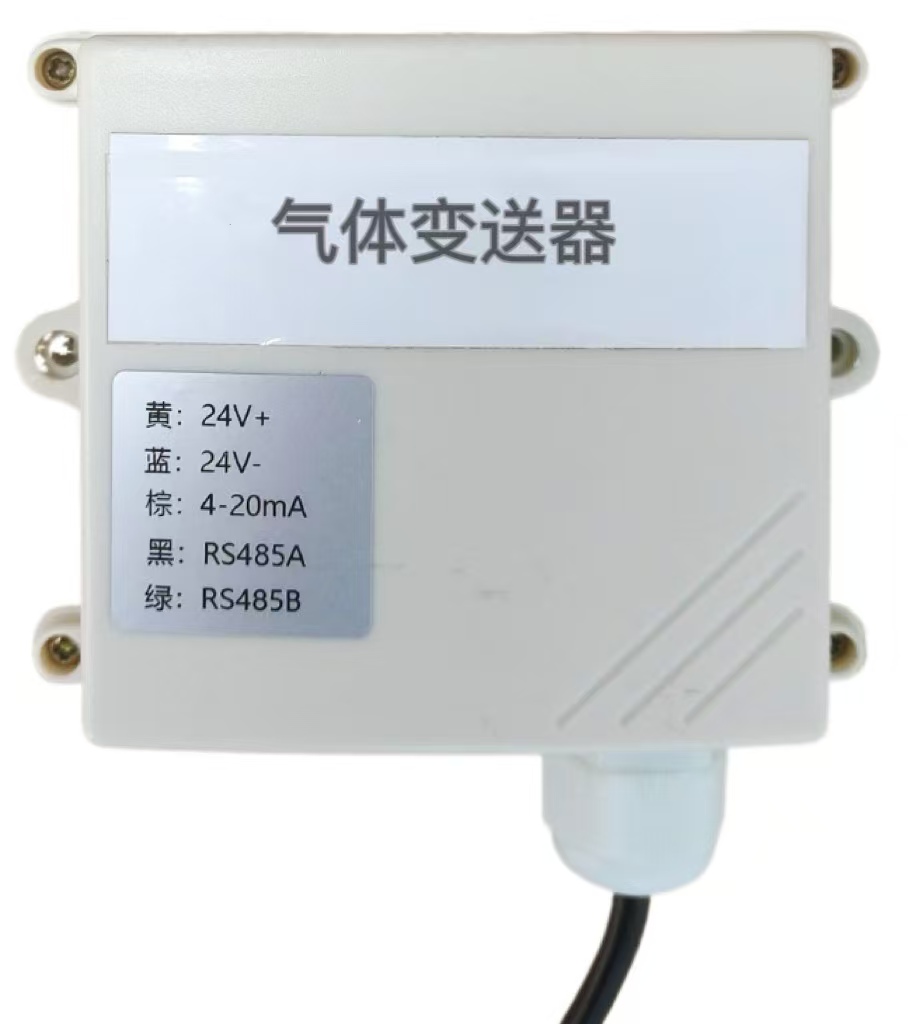

Product Introduction
Uses a wall-mounted waterproof enclosure, easy to install, protection rating.
New infrared detection technology for CO2 concentration measurement, with high accuracy, low drift, and long lifespan.
Measuring range 0-5000ppm, 0-10000ppm, with built-in temperature compensation, minimally affected by temperature.
| Item | Content |
| Power consumption | 0.3W（24VDC） |
| Power supply | 10~30V DC (average current <85mA) |
| CO2Measurement Range | 0~5000ppm (effective range 400-5000) Optional: 0~2000ppm (effective range 400-2000) 0~10000ppm (effective range 400-10000) |
| CO2Accuracy | 0 ~ 5000 ppm : ±(50ppm +3% F•S)（25℃） 0 ~10000 ppm : ±(50ppm +5% F•S)（25℃） |
| High precision: 0 ~ 5000 ppm : ±(45ppm +3% F•S) (25℃) 0 ~10000 ppm : ±(45ppm +5% F•S)（25℃） |
|
| System warm-up time | 2min (usable), 10min (maximum accuracy) |
| Response time | Generally less than 180s at 90% step change |
| Stability | <2%F·S |
| Nonlinearity | <1%F·S |
| 分辨率 | 1 ppm |
| Temperature measurement range | -40℃~+80℃ |
| Temperature Accuracy | ±0.5℃（25℃） |
| Temperature Resolution | 0.1℃ |
| Humidity measurement range | 0~100%RH |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| Humidity resolution | 0.1%RH |
| Working Environment | -20℃~+60℃，0%RH~95%RH non-condensing |
| Data update time | 2s |
Main Application Areas
- Indoor Air Quality Monitoring — Monitors CO2 levels in offices, schools, and commercial buildings to ensure healthy indoor air quality and optimize ventilation.
- Industrial Process Control — Provides reliable CO2 concentration measurement for industrial processes such as fermentation, food packaging, and chemical production.
- Greenhouse & Agriculture — Enables precise CO2 enrichment control in greenhouses to promote plant growth and improve crop yields.
- HVAC Systems — Integrates with HVAC systems for demand-controlled ventilation, reducing energy consumption while maintaining comfortable indoor environments.
- Safety & Leak Detection — Detects CO2 leaks in confined spaces, laboratories, and industrial facilities to protect personnel and comply with safety regulations.
