UK SST Zirconia Oxygen Sensor SystemO2S-FR-T2-18BM-C Description:
The zirconia oxygen sensor system provides a complete solution, eliminating the need for customers to develop their own electronics. It is commonly used in combustion control systems, burning coal, oil, natural gas, and biomass, as well as oxygen generation systems.
This zirconia oxygen sensor system consists of SST's fast response (<4s T90) zirconia (ZrO₂) screw-in sensor andOXY-LC oxygen sensorinterface board.The core of the system uses a proven zirconia element, which, due to its innovative design, does not require a reference gas. Combined with a robust stainless steel structure, the sensor can be used in extreme temperatures.
UK SST Zirconia Oxygen Sensor SystemO2S-FR-T2-18BM-C Features：
Compact size for easy integration. M18*1.5 thread mounting, 1-meter cable length.
Fast response sensor T90<4s, no need for ambient temperature and pressure stabilization.
Simple maintenance: single-point calibration in fresh air is sufficient for full-range accuracy (default air is 20.7% oxygen concentration).
Operating voltage and output are convenient for integration into PLC systems.
UK SST Zirconia Oxygen Sensor SystemO2S-FR-T2-18BM-C Parameters:
| Supply Voltage |
20 to 28 VDC |
| Operating Current |
600mA max @ 24 VDC |
| Oxygen Concentration Measurement Range |
0.1% - 25% Vol |
| Oxygen Concentration Output Signal |
4-20mA corresponding to 0-25% |
| Accuracy |
0.5%Vol O2 |
| Repeatability |
0.5%Vol O2 |
| Operating Temperature |
Oxygen sensor probe: -100 to 250°C Circuit board: -40 to 70°C |

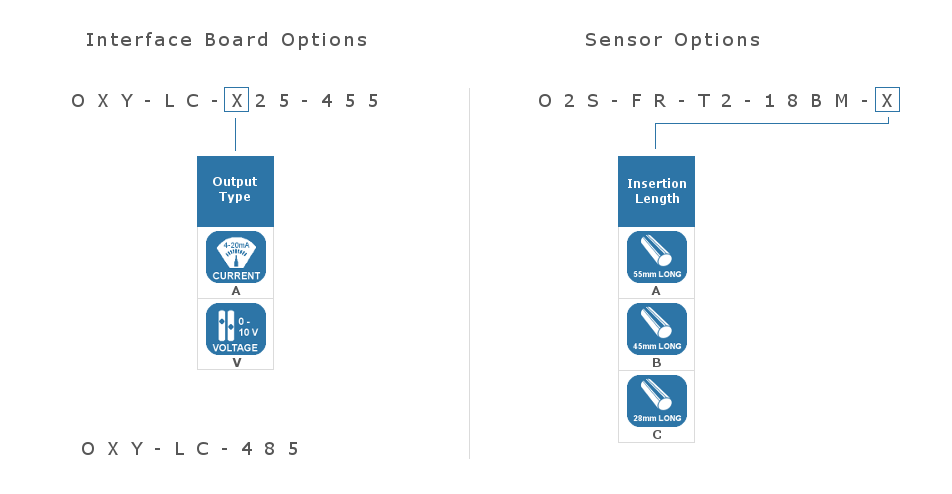

UK SST Zirconia Oxygen Sensor SystemO2S-FR-T2-18BM-C Selection:
