Product Introduction
UK SST Zirconia Oxygen Sensor O2 Sensor PCB Mount SensorO2S-T3-PCB Features:
Zirconia (ZrO2) sensing element
Long life, non-consumable technology
Integral heating element
High accuracy
Operates with SST's OXY-LC interface board series
UK SST Zirconia Oxygen Sensor O2 Sensor PCB Mount Sensor O2S-T3-PCBBenefits:
No reference gas required
No temperature stabilization required
UK SST Zirconia Oxygen Sensor O2 Sensor PCB Mount Sensor O2S-T3-PCBSpecifications:
| Heater voltage |
|
| Operating (standard response) |
4VDC± 0.1VDC(1.7A) |
| Standby |
1.65VDC(0.7A) |
| Operating (fast response) |
4.35VDC± 0.1VDC(1.85A) |
| Standby |
2VDC(0.85A) |
| Pump impedance at 700°C |
< 6kΩ |
| Allowable gas temperature |
-50°C~+50°C |
| Gas flow rate |
0—10 m/s |
| In manifold |
1L/min max |
| In open flow |
2m/s |
| Repeatable allowable acceleration |
5g |
| Occasional allowable acceleration |
30g |
| Oxygen pressure range |
2mbar—3bar max |
| Accuracy |
5mbar max |
| Internal operating temperature |
700°C |
| Response time (10-90% step) |
|
| Standard response sensor |
< 15s |
| Fast response sensor |
<4s |
| Warm-up time (before sensor operation) |
60s |
| Warm-up time (standby wake-up) |
20s |
| Output stabilization time |
180s |

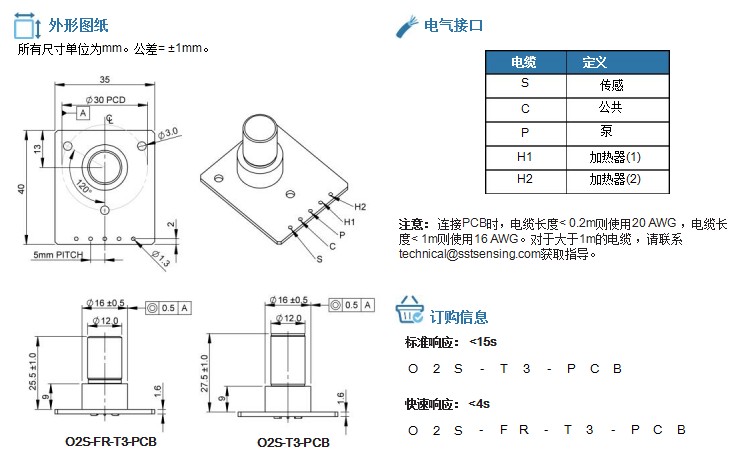

UK SST Zirconia Oxygen Sensor O2 Sensor PCB Mount SensorO2S-T3-PCB Dimensions:
