Product introduction

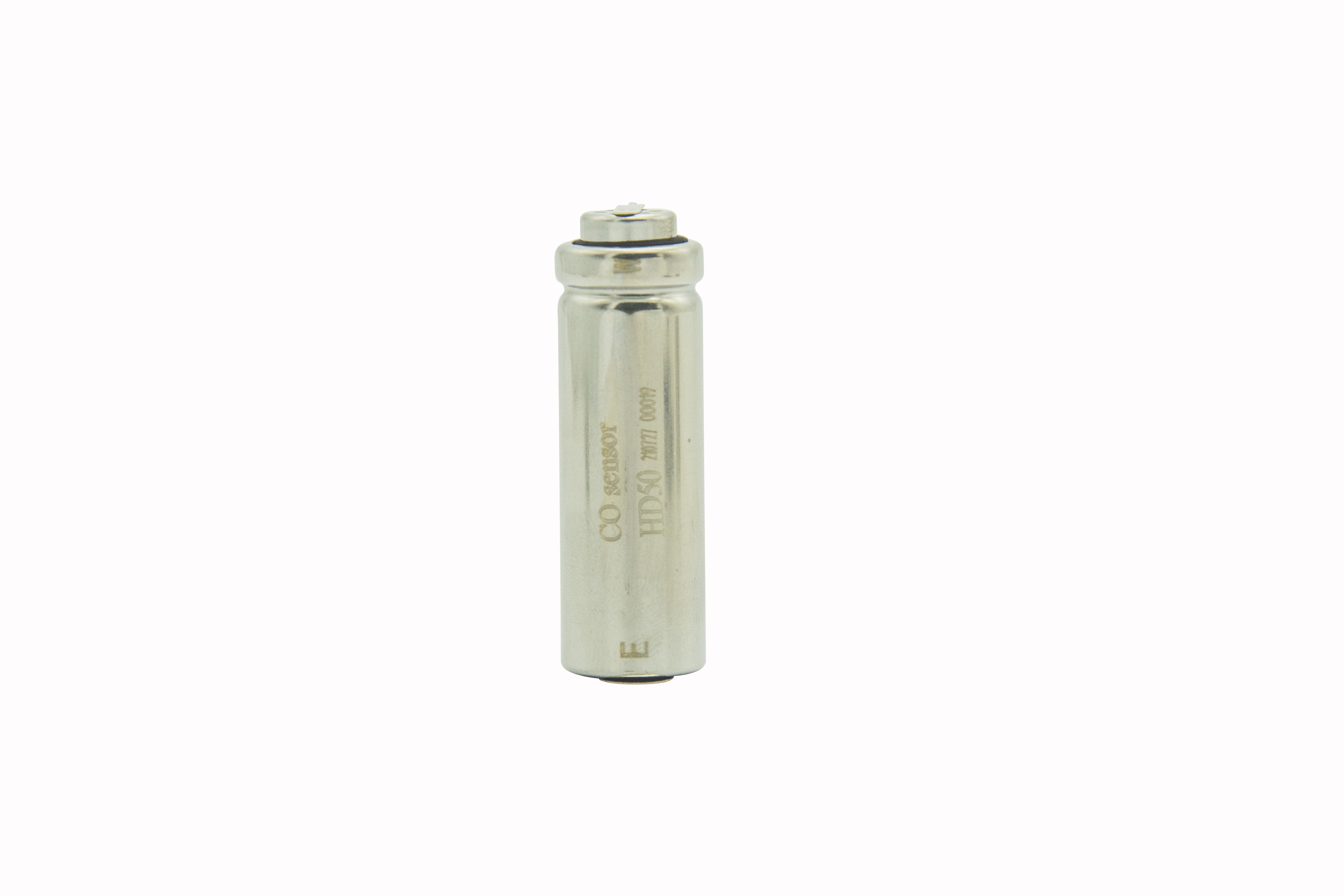

1. Features of carbon monoxide sensor HD50:
Long service life, electrochemical principle
Low sensitivity to ethanol
Reduces interference from various gases, high linear output characteristics
Excellent sensor consistency
Excellent selectivity and repeatability for carbon monoxide gas
Sensor signal output is linear with carbon monoxide gas concentration
TUV RoHS certified
Meets UL2034, EN50291, EN5431 requirements
2. Typical applications of carbon monoxide sensor HD50:
Residential and commercial carbon monoxide alarms
Vehicle-mounted alarms
Smart homes
Commercial carbon monoxide detectors
Industrial carbon monoxide detectors
Indoor parking lot ventilation control
Portable carbon monoxide concentration meters
CO detection alarms
3. Main parameters of carbon monoxide sensor HD50:
| Length |
50.5mm |
| Height |
20mm |
| Body diameter |
16.5mm |
| Element pin length |
3.5mm |
| Element pin spacing |
50mm |
| Dual pin spacing |
7.2mm |
| Distance to PCB board height |
16.5mm |
| Detection accuracy |
< 2% |
| Detection range |
0-10000 |
| Output current |
1-2.5 nA/ppm |
| Response time |
< 50 S |
| Operating humidity |
5 - 99% RH |
| Repeatability |
1% F.S |
| Hysteresis |
1% F.S |
| Drift |
1 |
| Sensitivity |
1 |
| Protection rating |
IP55 |
| Operating temperature |
-15℃--+60℃ |
| Net weight |
15 grams |
| Service life |
10 years |
