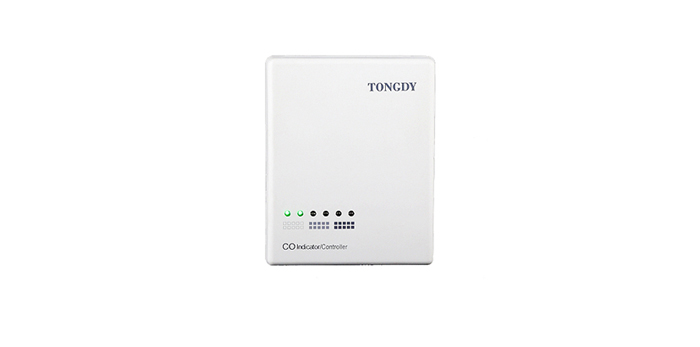

Carbon Monoxide Transmitter - TSM-CO

I.Carbon Monoxide TransmitterTSM-CO Product Description:

The F2000TSM-CO monitoring controller is specifically designed for real-time monitoring of carbon monoxide concentration in work and living environments. Its dry contact relay output can control the start/stop of fans or other ventilation equipment based on the CO measurement value of the surrounding environment. Its 0~10VDC or 4~20mA analog output can transmit indoor CO measurement values to other devices.

The F2000TSM-CO can also provide an RS485 communication interface with independent address, which can be connected to a computer or other control system for more intelligent control of ventilation in each room.

II. Carbon Monoxide Transmitter TSM-COFeatures:

Wall-mounted type, real-time monitoring of indoor CO concentration, range 0~500ppm

Built-in Japanese semiconductor CO sensor, normal service life over 3 years

24-hour monitoring of CO concentration in controlled areas, even minor leaks can be detected

The monitor is specially designed with 6 indicator lights for clear indoor CO status

One relay output optional, can control fans or alarms and other devices. CO value can be preset to control this ON/OFF output. Provides 4 CO value options

One analog output corresponding to the detected CO value

6 indicator lights represent 6 CO monitoring ranges

RS-485 communication interface optional, 15KV anti-static protection, independent address setting

III. Carbon Monoxide Transmitter TSM-COApplication Scope：

Monitoring indoor CO concentration

Suitable for homes and public environments

Suitable for kitchens, restaurants

Other environments with air quality requirements

Automatic ventilation control

Also suitable for underground parking lots, production workshops, and even industrial environments

Note: F2000TSM-CO cannot be used as safety equipment, such as coal mine alarm devices.
