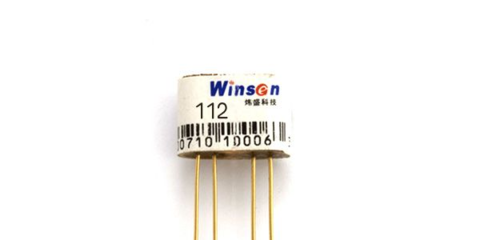

Catalytic Sensor MC112/112C Product Description
-
The MC112 catalytic element operates based on the principle of catalytic combustion effect. It consists of a detection element and a compensation element paired to form two arms of a Wheatstone bridge. When encountering combustible gases, the resistance of the detection element increases, causing a change in the bridge output voltage. This voltage change increases proportionally with gas concentration, while the compensation element provides reference and temperature/humidity compensation.
-
Catalytic Sensor MC112/112CSensor Features
-
Bridge output voltage is linear
Fast response speed
Good repeatability and selectivity
Stable and reliable element operation
Excellent resistance to H2S and organic silicon poisoning
-
Catalytic Sensor MC112/112CMain Applications
-
Detection of concentration of combustible gases such as natural gas, liquefied gas, coal gas, alkanes, and organic solvent vapors like gasoline, alcohols, ketones, benzene in industrial sites.
Combustible gas leak alarms; combustible gas detectors; gas concentration meters.
-
Catalytic Sensor MC112/112CTechnical Specifications
| Product Model |
MC112/ MC112C |
|
| Product Type |
Carrier catalytic gas-sensitive element |
|
| Standard Package |
Metal package, metallurgical powder mesh |
|
| Operating Voltage (V) |
3.0±0.1 |
|
| Operating Current (mA) |
110±10 |
|
| Sensitivity (mV) |
1% Methane |
20~40 |
| 1% Butane |
30~50 |
|
| 1% Hydrogen |
25~45 |
|
| Linearity (%) |
≤5 |
|
| Measurement Range (%LEL) |
0~100 |
|
| Response Time (90%) |
Less than 10 seconds |
|
| Recovery Time (90%) |
Less than 30 seconds |
|
| Operating Environment |
-40 to +70°C, below 95% RH |
|
| Storage Environment |
-20 to +70°C, below 95% RH |
|
| Dimensions (mm) |
MC112:9.5×14×19 MC112C: 8×10×14 |
|
| Explosion-proof Mark |
ExdibⅠ |
|
