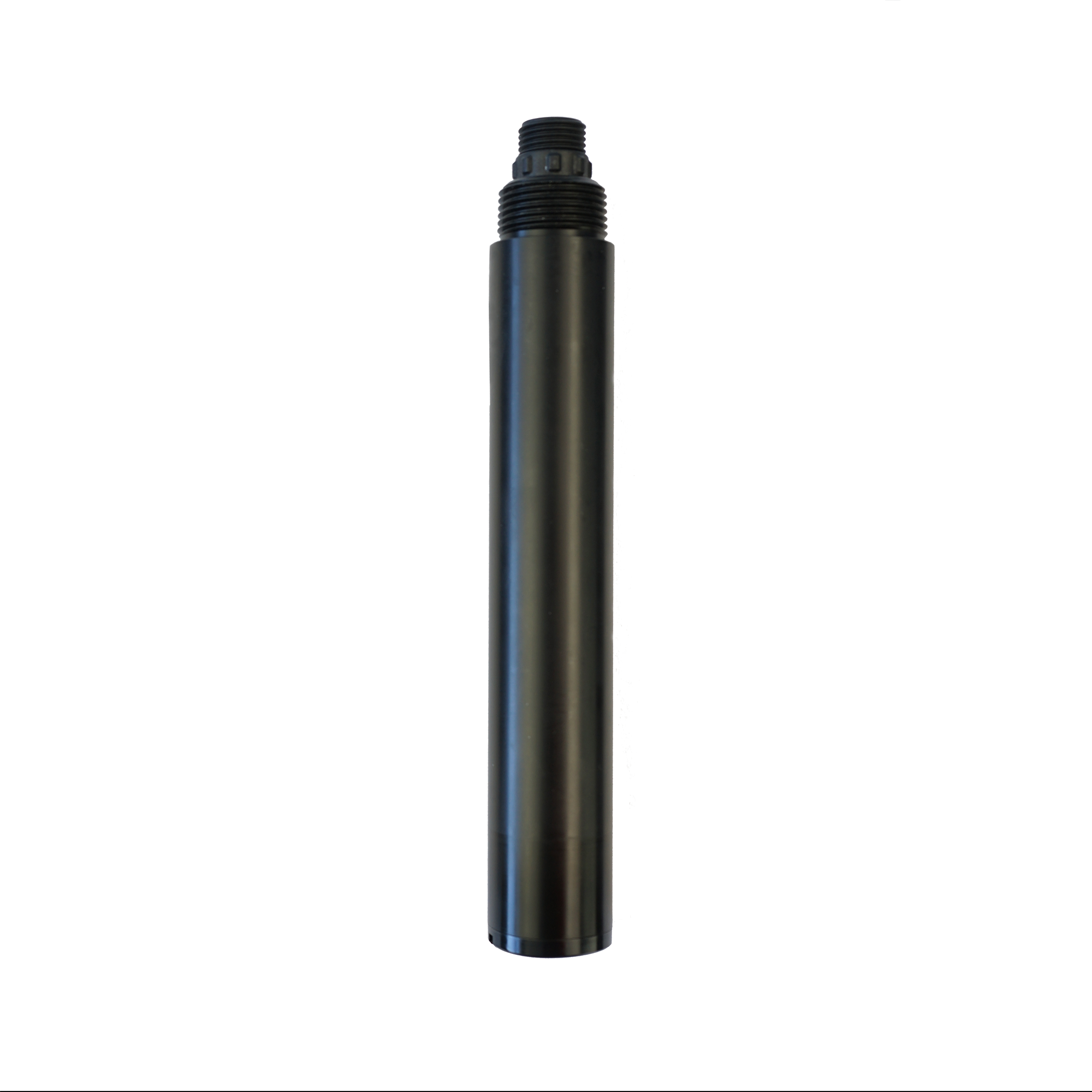

Online chlorophyll-a water quality sensor (AMT-YLS300) - AMT-YLS300
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Product Introduction
Chlorophyll-a-water-quality-sensor-101
70912101
AMT-YLS300

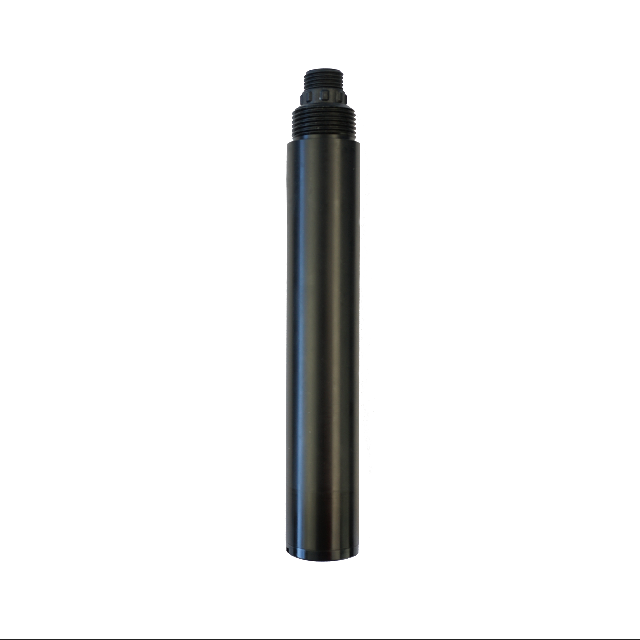

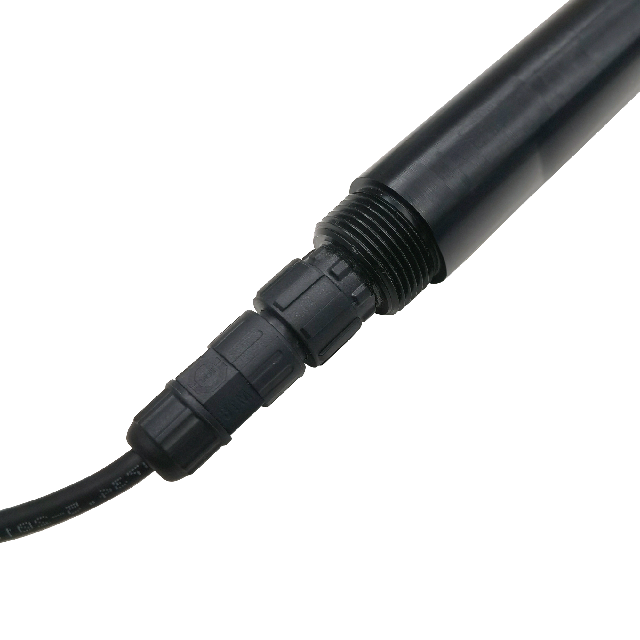

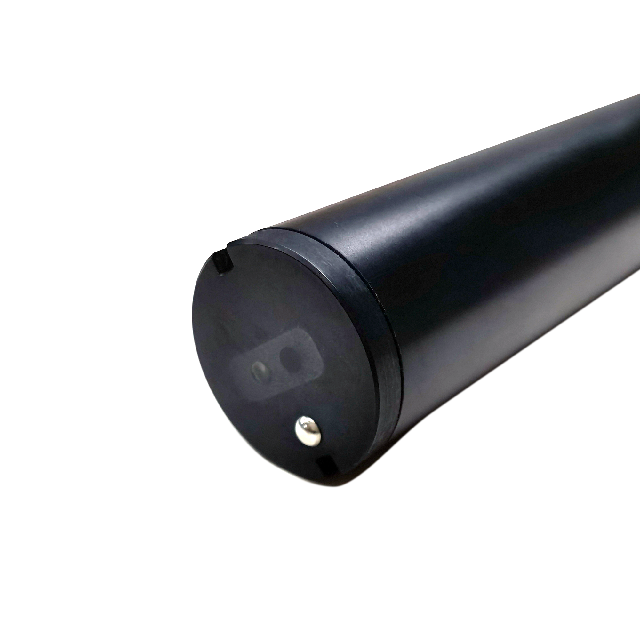

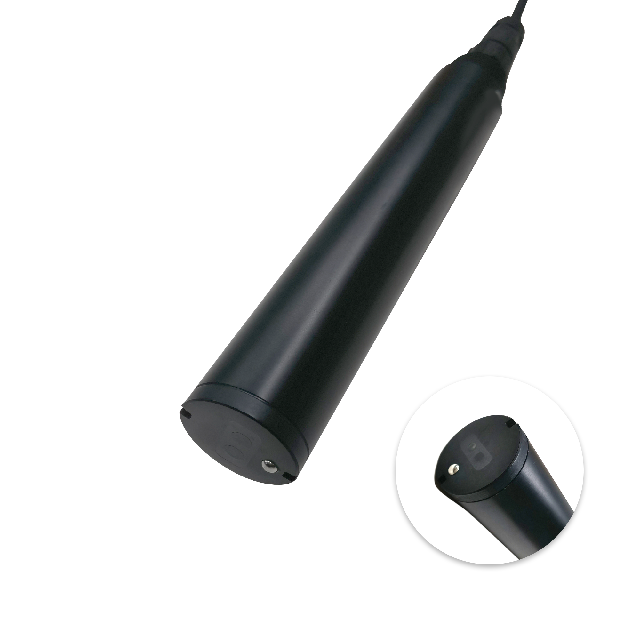

Online Chlorophyll-a Water Quality Sensor (AMT-YLS300)
It is an intelligent water quality monitoring sensor using an RS485 communication interface and standard Modbus protocol
sensor. This sensor is based on coherent fluorescence detection technology and has advantages such as good selectivity, strong anti-interference, high sensitivity, no pretreatment required, and fast measurement
points. It can measure chlorophyll, rhodamine, etc. This sensor is widely used in water environment monitoring such as river sections, lakes and reservoirs, and coastal areas, and is a monitoring
Phytoplankton, algae growth, water eutrophication; early warning of algal blooms; the best choice for studying aquatic ecosystems.
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Dimensions: D30mm, L185mm
Main Application Areas
- River Monitoring — Continuous chlorophyll-a measurement in rivers for water quality assessment and algal bloom detection.
- Lake and Reservoir Management — Tracking chlorophyll-a levels to monitor eutrophication and ecological health in lakes and reservoirs.
- Aquaculture — Monitoring chlorophyll-a to maintain optimal water conditions for fish and shellfish farming.
- Environmental Research — Providing accurate chlorophyll-a data for scientific studies on aquatic ecosystems.
