Online Chlorophyll-a Monitoring Probe Simple Structure Easy Maintenance - AMT-YLS300
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Product Introduction
Chlorophyll-a-water-quality-sensor-101
70912101
AMT-YLS300

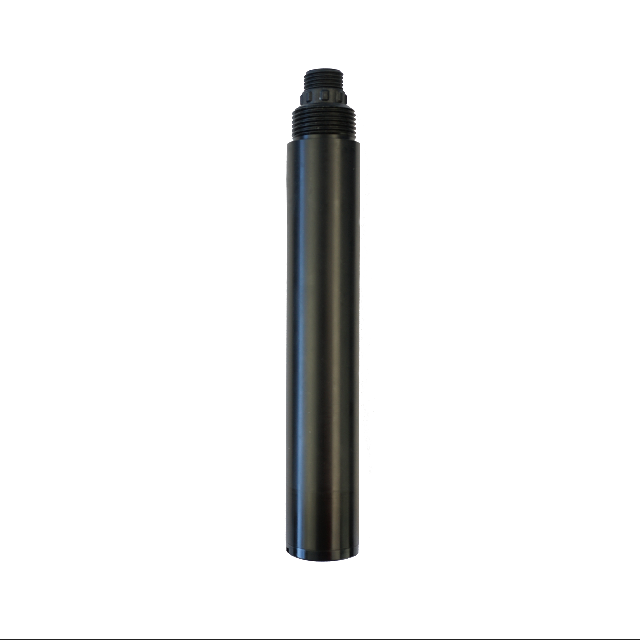

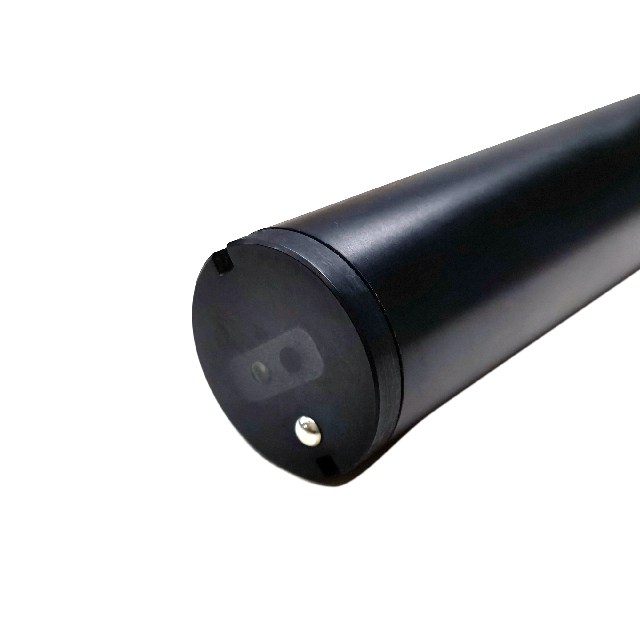

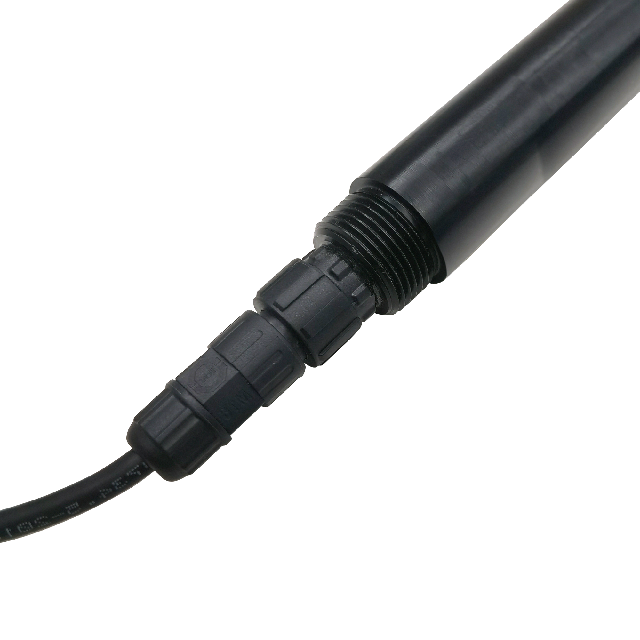

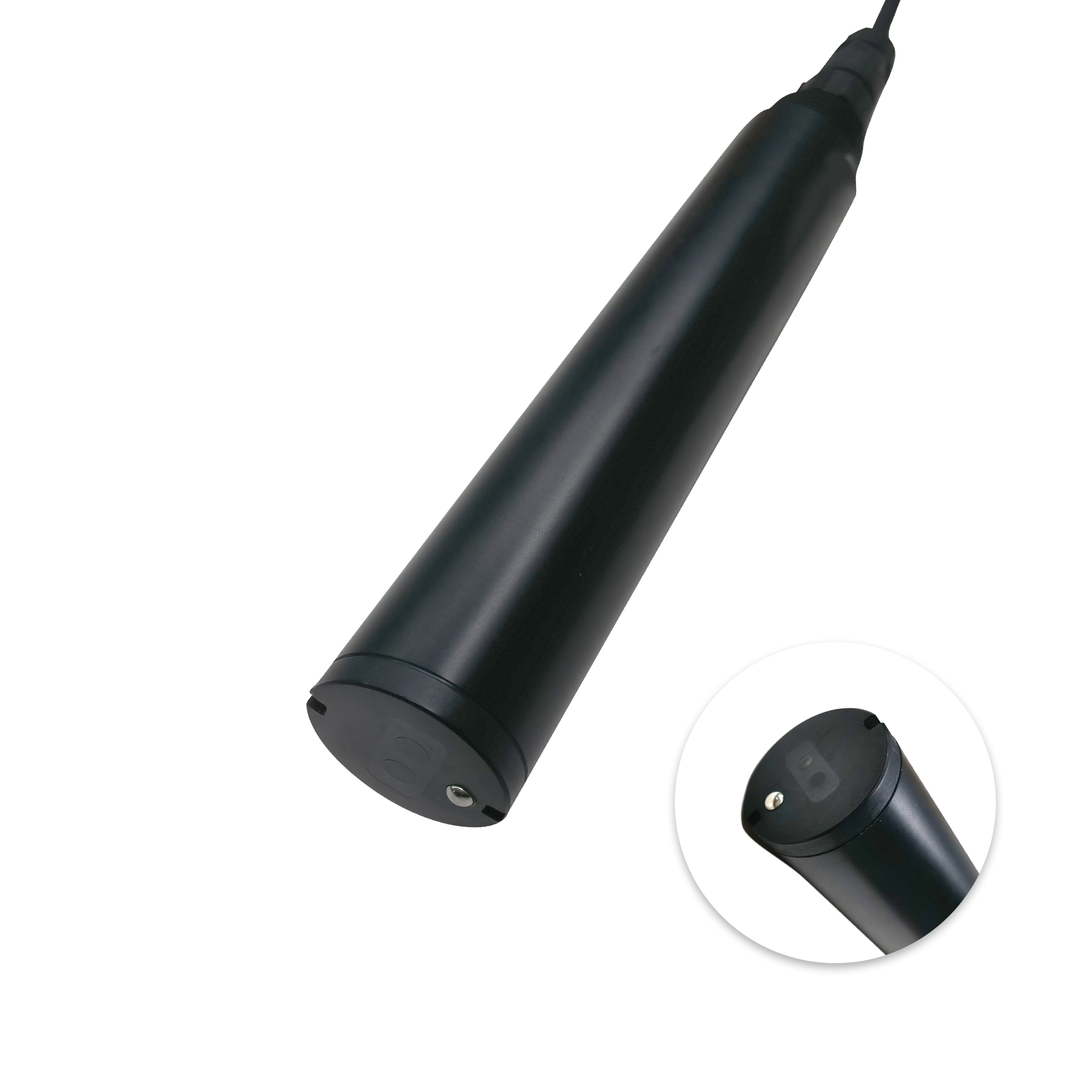

Online Chlorophyll-a Water Quality Sensor (AMT-YLS300)
It is an intelligent water quality monitoring sensor using an RS485 communication interface and standard Modbus protocol
sensor. This sensor is based on coherent fluorescence detection technology and has advantages such as good selectivity, strong anti-interference, high sensitivity, no pretreatment required, and fast measurement
points. It can measure chlorophyll, rhodamine, etc. This sensor is widely used in water environment monitoring such as river sections, lakes and reservoirs, and coastal areas, and is a monitoring
Phytoplankton, algae growth, water eutrophication; early warning of algal blooms; the best choice for studying aquatic ecosystems.
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Dimensions: D30mm, L185mm
Main Application Areas
- River Monitoring — Continuous chlorophyll-a monitoring in river cross-sections for water quality assessment.
- Lake and Reservoir Management — Tracking algal blooms and eutrophication in lakes and reservoirs.
- Aquaculture — Monitoring chlorophyll-a levels to maintain optimal water conditions for fish and shrimp.
- Environmental Research — Providing accurate chlorophyll-a data for ecological and environmental studies.
Keywords：chlorophyll-a sensor, water quality sensor, online monitoring probe, fluorescence sensor, RS485 sensor, Modbus sensor, chlorophyll meter, water quality monitoring
