Online Chlorophyll-a Water Quality Analyzer Digital Smart Sensor - AMT-YLS300
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Product Introduction
Chlorophyll-a-water-quality-sensor-101
70912101
AMT-YLS300

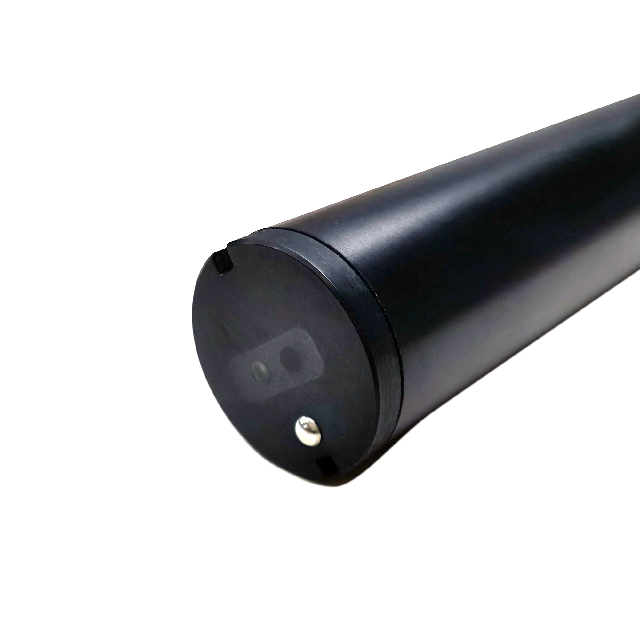

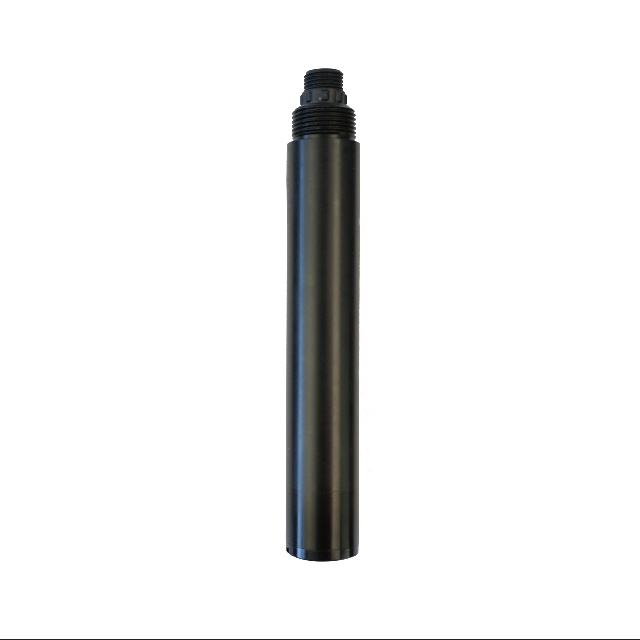

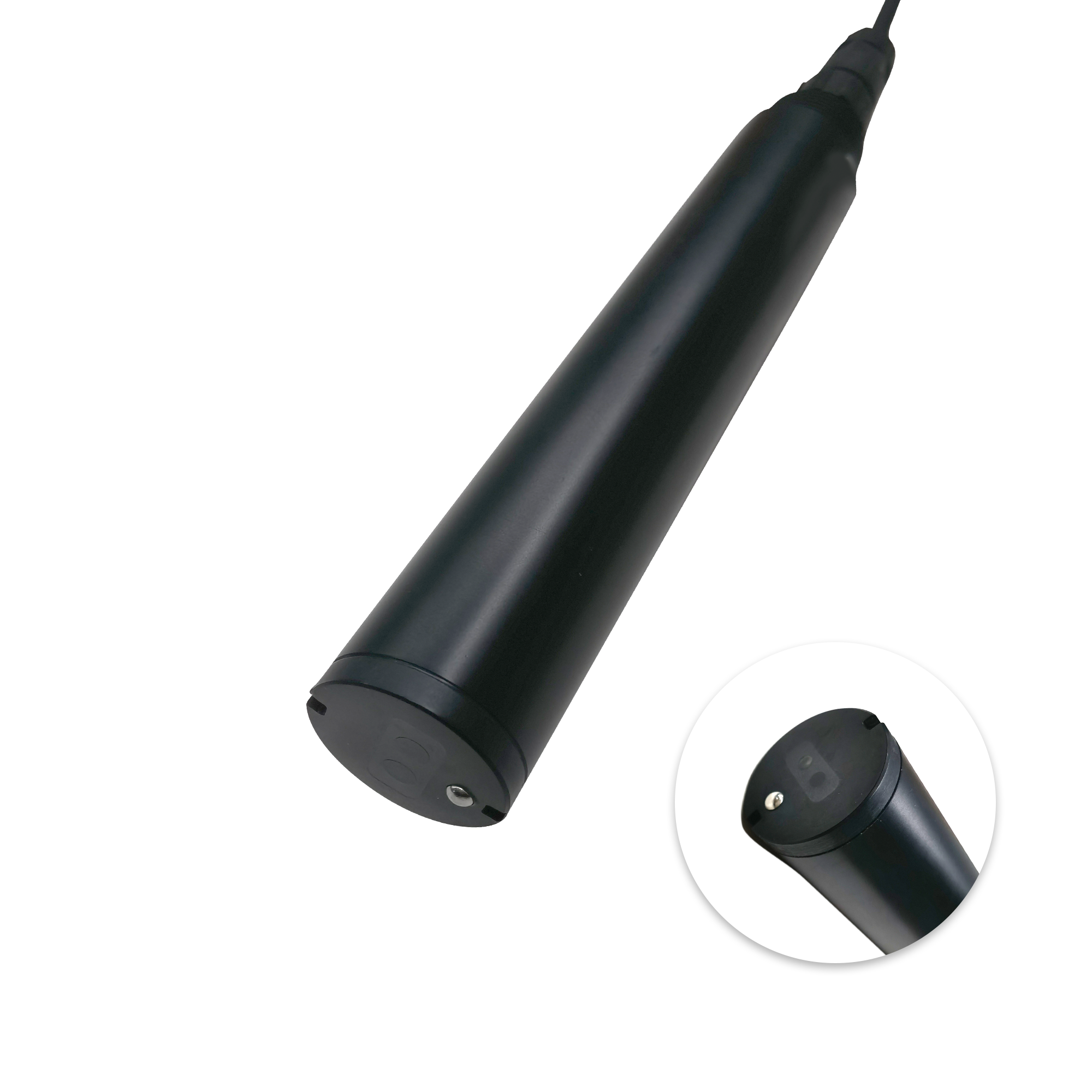

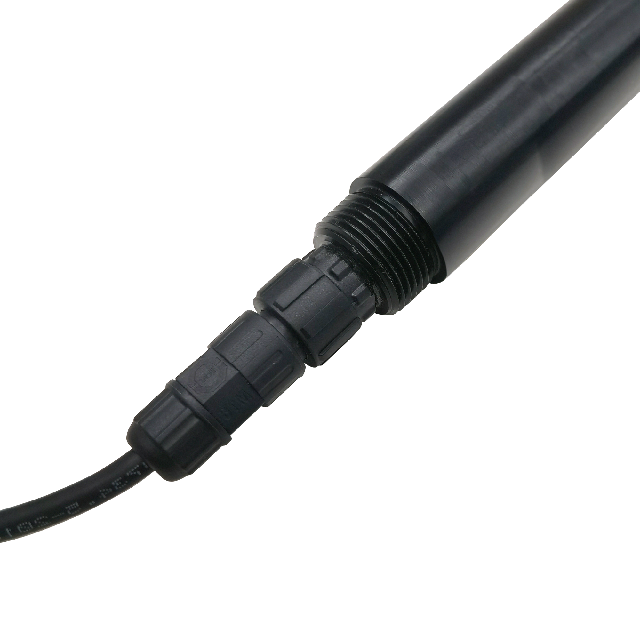

Online Chlorophyll-a Water Quality Sensor (AMT-YLS300)
It is an intelligent water quality monitoring sensor using an RS485 communication interface and standard Modbus protocol
sensor. This sensor is based on coherent fluorescence detection technology and has advantages such as good selectivity, strong anti-interference, high sensitivity, no pretreatment required, and fast measurement
points. It can measure chlorophyll, rhodamine, etc. This sensor is widely used in water environment monitoring such as river sections, lakes and reservoirs, and coastal areas, and is a monitoring
Phytoplankton, algae growth, water eutrophication; early warning of algal blooms; the best choice for studying aquatic ecosystems.
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Dimensions: D30mm, L185mm
Main Application Areas
- Environmental Monitoring — Real-time monitoring of chlorophyll-a concentrations in rivers, lakes, and reservoirs to assess eutrophication and water quality trends.
- Aquaculture — Monitoring algal blooms and water quality in fish and shrimp ponds to maintain optimal growth conditions and prevent losses.
- Drinking Water Safety — Early warning of algal contamination in drinking water sources to ensure safe and compliant water supply.
- Scientific Research — Supporting limnology and oceanography studies by providing accurate chlorophyll-a data for ecological analysis.
