Wastewater Treatment Plant Chlorophyll-a Online Monitoring Sensor - AMT-YLS300
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Product Introduction
Chlorophyll-a-water-quality-sensor-101
70912101
AMT-YLS300

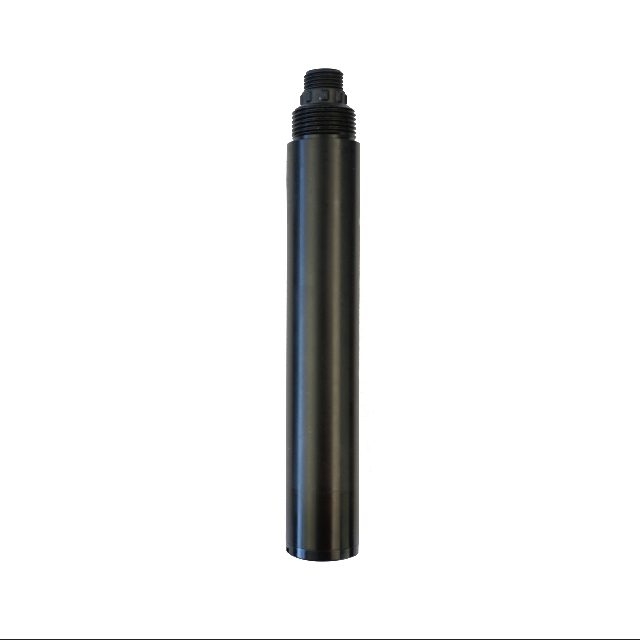

Online Chlorophyll-a Water Quality Sensor (AMT-YLS300)
It is an intelligent water quality monitoring sensor using an RS485 communication interface and standard Modbus protocol
sensor. This sensor is based on coherent fluorescence detection technology and has advantages such as good selectivity, strong anti-interference, high sensitivity, no pretreatment required, and fast measurement
points. It can measure chlorophyll, rhodamine, etc. This sensor is widely used in water environment monitoring such as river sections, lakes and reservoirs, and coastal areas, and is a monitoring
Phytoplankton, algae growth, water eutrophication; early warning of algal blooms; the best choice for studying aquatic ecosystems.
Measurement principle: fluorescence method
Maximum depth: 20 meters underwater
Measurement range: 0~400.0ug/L
Housing material: POM
Measurement accuracy: 0.1ug/L, 0.1℃
Protection rating: IP68
Resolution: ±3%F.S., ±0.3℃
Installation method: immersion installation, 3/4” NPT pipe thread
Signal output: RS-485 (Modbus/RTU)
Dimensions: D30mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitor chlorophyll-a levels in treatment plant effluent to assess organic load and process efficiency.
- Environmental Water Monitoring — Track algal blooms and eutrophication in rivers, lakes, and reservoirs for ecological health assessment.
- Aquaculture — Ensure optimal water quality for fish and shrimp farming by detecting chlorophyll-a fluctuations.
- Drinking Water Safety — Early warning of algal contamination in source water to prevent taste and odor issues.
Keywords：chlorophyll-a sensor, online water quality sensor, wastewater monitoring, fluorescence sensor, RS-485 sensor, Modbus sensor, algae monitoring, water quality analyzer
