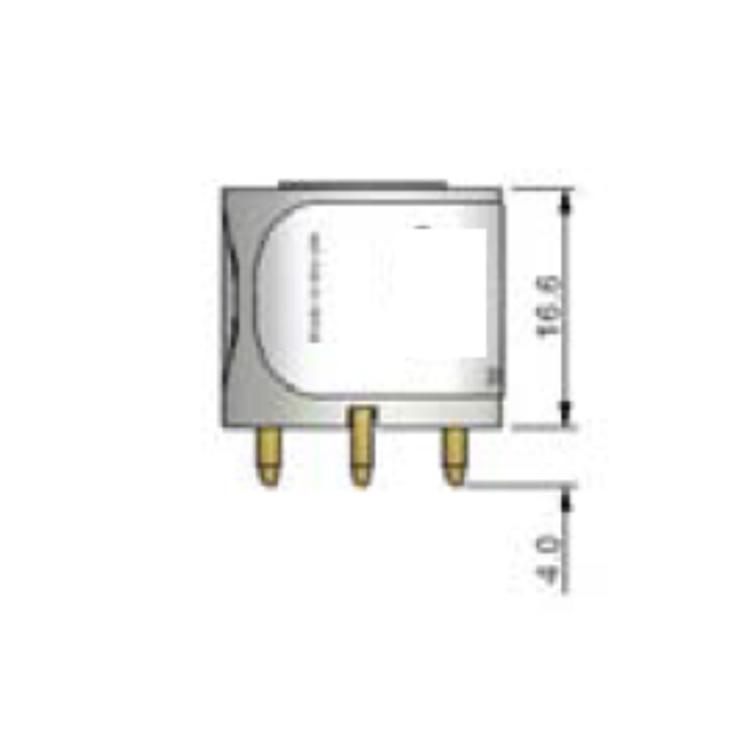

UK CITY Oxygen Sensor O2 Sensor - 4OXLL

Technology

Electrochemical

Measuring range

0-25% vol.O2

zuiLarge overload

30% vol. O2

Output signal

80 - 130mA(in air)

T90Response time

<15Second

T97Response time

<35Second

Zero current (Offset）(3minutes N2after)

<0.3% vol. O2

Preheating Time

Refer to feature description

Linearity

S = K loge1/ (1-C)

Bias voltage

-600 ± 10 mV

20.9%O2Rated power under

0.5 mW

Housing material

Modified polyphenylene ether

Weight

5 ± 0.2 g

Direction sensitivity

<0.2%vol. O2Equivalent value

Operating temperature range

40°C ~ 60°C

Recommended storage temperature

0°C ~ 20°C(original packaging)

Thermal transient (Sudden temperature drop +22°Cto -20°C)

<23.5% vol. O2

Operating humidity range

15%rH ~ 90%rHNon-condensing

Operating pressure range

Atmospheric pressure ± 20%

Pressure coefficient

<0.02%Signal/mbar

Pressure transient (60 cm H2OStep change )

<150%Signal change

Long-term output drift

<5%Signal loss (during service life)

Expected operating life

5years (in air)
