Product introduction

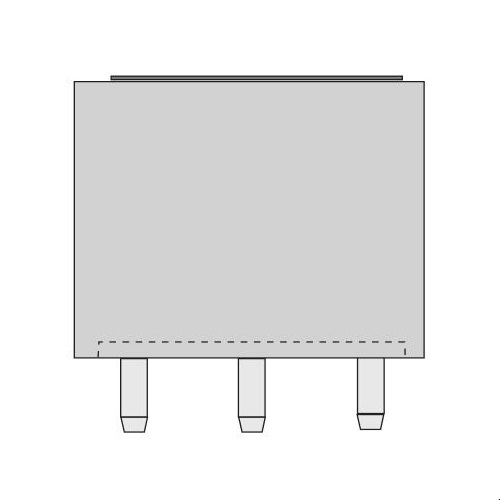

Ethylene oxide gas sensor 4ETO technical parameters:
| Measurement range |
0-20ppm |
| Maximum range |
100ppm |
| Service life |
2 years in air |
| Output signal |
1.9±0.5uA/ppm |
| Resolution |
0.1ppm |
| Temperature |
-20-50℃ |
| Pressure |
Atmospheric pressure ±10% |
| Response time |
＜120s |
| Relative humidity |
15% -90% |
| Typical baseline range (pure gas) |
0-3ppm |
| Maximum zero drift |
4ppm |
| Long-term drift |
<5%/year |
| Load resistance |
10Ω |
| Bias voltage |
300mV |
| Repeatability |
2% |
| Linearity |
Linear |
| Physical characteristics |
|
| Weight |
Approximately 5g |
| Storage life |
6 months in CTL |
| Storage temperature |
0-20℃ |
| Warranty period |
One year after-sales |
