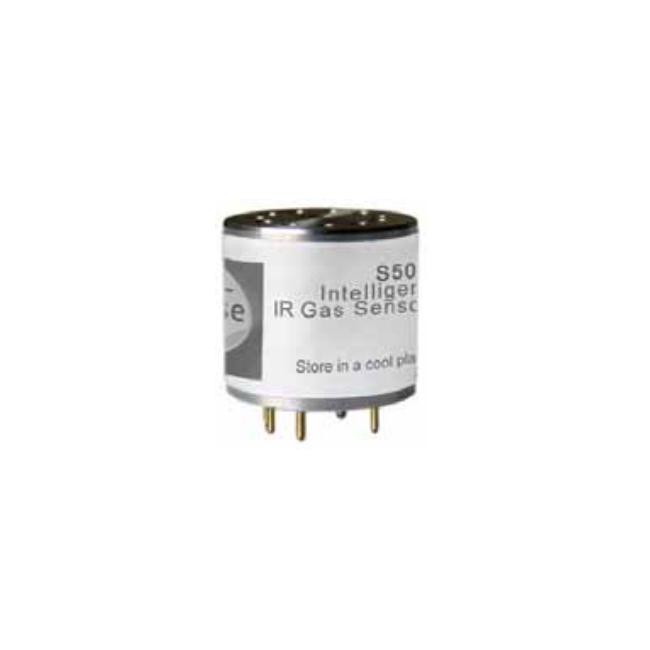

UK Clairair infrared gas sensor - S509-CH4
High-precision measurement over a wide operating temperature range of -40°C to +70°C
The sensor automatically corrects drift and adjusts the zero point automatically.
Immune to toxic and harmful substances, with anti-poisoning capability.
It can operate in high-humidity environments.
It uses the non-dispersive infrared principle and has a long service life.
While the sensor is operating, it outputs both digital and analog signals simultaneously.
It features a standard interface output, and the peripheral circuit is simple to use.
Product Introduction
I. Product description of the infrared gas sensor S509-CH4:
S509-CH4 Infrared Gas SensorIt is developed based on the Beer-Lambert law and infrared spectroscopy theory, and can accurately detect methane, carbon dioxide, hydrocarbons, and more.
II. Product features of the infrared gas sensor S509-CH4:
High-precision measurement over a wide operating temperature range of -40°C to +70°C
The sensor automatically corrects drift and adjusts the zero point automatically.
Immune to toxic and harmful substances, with anti-poisoning capability.
It can operate in high-humidity environments.
It uses the non-dispersive infrared principle and has a long service life.
While the sensor is operating, it outputs both digital and analog signals simultaneously.
It features a standard interface output, and the peripheral circuit is simple to use.
III. Product parameters of the infrared gas sensor S509-CH4:
| 工作电压 |
5V-6V, 5V is recommended |
| (Vout) Output voltage |
0.4V to 2V; an output of 0-0.3V indicates a sensor fault. |
| Detection range |
Corresponding to CH4 0-5% VOL |
| Preheating Time |
<20S |
| 分辨率 |
1‰ FS |
| Response time T90 |
≤ 30 |
| Measurement accuracy |
±3%FS |
| Zero-point repeatability |
≤ ±1%FS |
| Long-term zero drift |
≤ ±1% FS/year |
| 工作温度 |
-40℃～﹢70℃ |
