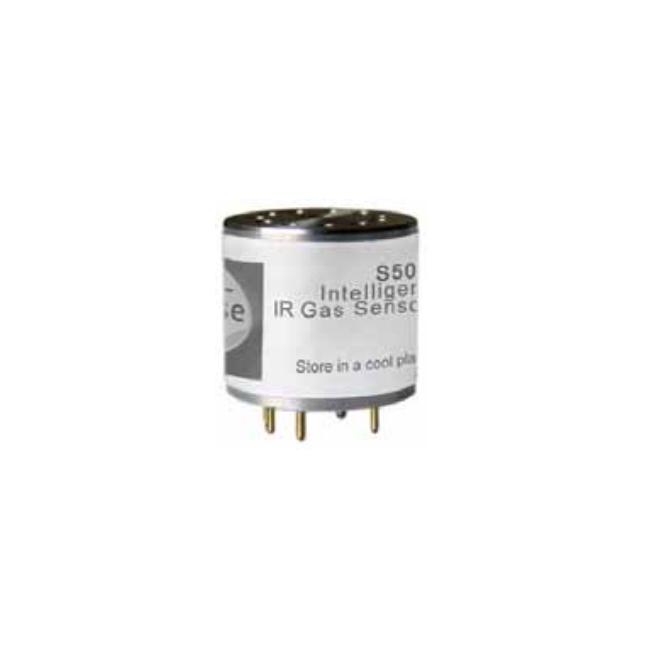

UK Clairair infrared gas sensor - S509-CO2
High-precision measurement over a wide operating temperature range of -40°C to +70°C
The sensor automatically corrects drift and adjusts the zero point automatically.
Immune to toxic and harmful substances, with anti-poisoning capability.
It can operate in high-humidity environments.
It uses the non-dispersive infrared principle and has a long service life.
While the sensor is operating, it outputs both digital and analog signals simultaneously.
It features a standard interface output, and the peripheral circuit is simple to use.
Product Introduction
1. Product Description of Infrared Gas Sensor S509-CO2:
S509-CO2Infrared Gas SensorIt is developed based on the Beer-Lambert law and infrared spectroscopy theory, and can accurately detect methane, carbon dioxide, hydrocarbons, and more.
2. Product Features of Infrared Gas Sensor S509-CO2:
- High-precision measurement over a wide operating temperature range of -40°C to +70°C
- The sensor automatically corrects drift and adjusts the zero point automatically.
- Immune to toxic and harmful substances, with anti-poisoning capability.
- It can operate in high-humidity environments.
- It uses the non-dispersive infrared principle and has a long service life.
- While the sensor is operating, it outputs both digital and analog signals simultaneously.
- It features a standard interface output, and the peripheral circuit is simple to use.
3. Product Parameters of Infrared Gas Sensor S509-CO2:
- Operating voltage: 5V-6V, recommended 5V
- (Vout) Output Voltage: 0.4V～2V; output of 0-0.3V indicates sensor malfunction
- Corresponding to 0～2.3V output range: 0%FS～100%FS
- Detection range: corresponding to CO2 0～5%VOL
- Preheating time: <20S
- Operating pressure: 700 ～1300 MBAR
- Storage temperature: -40℃～+70℃
