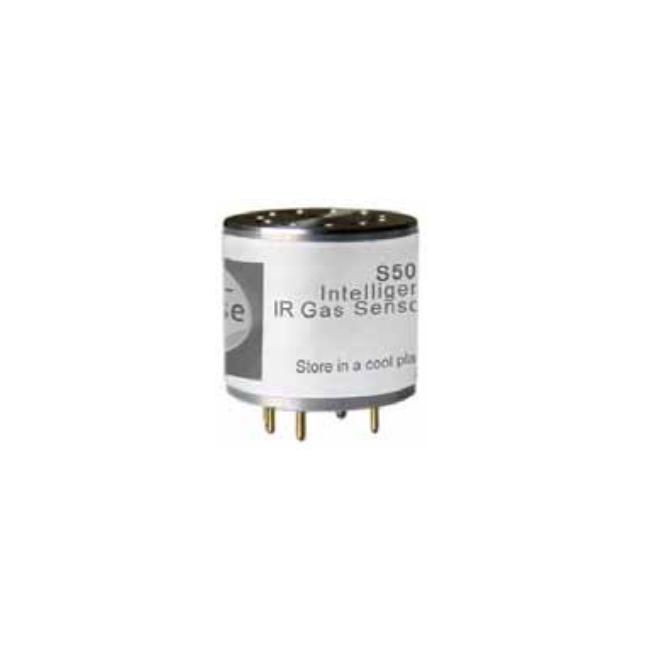

UK Clairair infrared gas sensor - S509
High-precision measurement over a wide operating temperature range of -40°C to +70°C
The sensor automatically corrects drift and adjusts the zero point automatically.
Immune to toxic and harmful substances, with anti-poisoning capability.
It can operate in high-humidity environments.
It uses the non-dispersive infrared principle and has a long service life.
While the sensor is operating, it outputs both digital and analog signals simultaneously.
It features a standard interface output, and the peripheral circuit is simple to use.
Product Introduction
1. Description of S509 Infrared Gas Sensor Product:
S509 Infrared Gas SensorIt is developed based on the Beer-Lambert law and infrared spectroscopy theory, and can accurately detect methane, carbon dioxide, hydrocarbons, and more.
2. Product Features of S509 Infrared Gas Sensor:
High-precision measurement over a wide operating temperature range of -40°C to +70°C
The sensor automatically corrects drift and adjusts the zero point automatically.
Immune to toxic and harmful substances, with anti-poisoning capability.
It can operate in high-humidity environments.
It uses the non-dispersive infrared principle and has a long service life.
While the sensor is operating, it outputs both digital and analog signals simultaneously.
It features a standard interface output, and the peripheral circuit is simple to use.
3. Product Parameters of S509 Infrared Gas Sensor:
Operating voltage: 5V-6V, recommended 5V
(Vout) Output Voltage: 0.4V～2V; output of 0-0.3V indicates sensor malfunction
Corresponding to 0～2.3V output range: 0%FS～100%FS
Detection range: corresponding to CO2 0～5%VOL
Preheating time: <20S
Operating pressure: 700 ～1300 MBAR
Storage temperature: -40℃～+70℃
