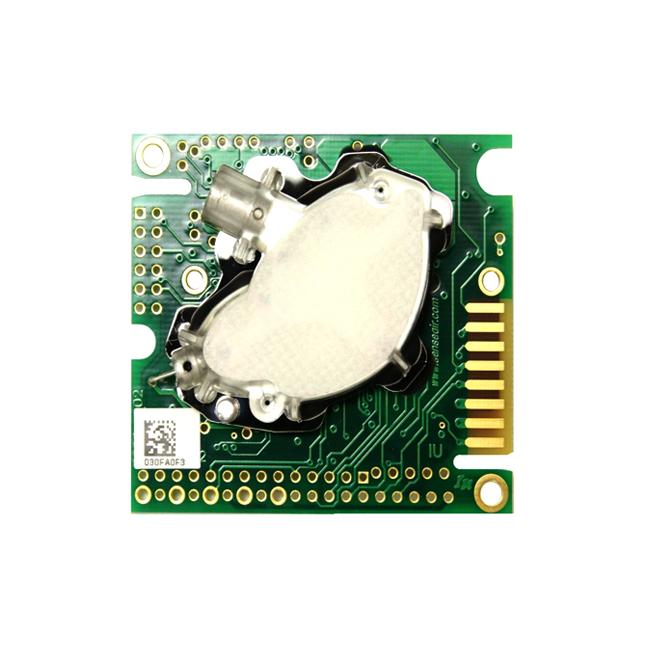

Carbon Dioxide Detection Module (CO2 Detection Module) - K30
K30 has 2 analog outputs and 2 digital outputs, flexibly configurable, and can also be configured via SADK or other custom software. K30 offers customization services for various sensing and control devices. The platform is designed as an OEM module that can be embedded in host devices.
Product Introduction
1. Carbon Dioxide Detection Module (CO2 Detection Module) K30 Product Description
The Carbon Dioxide Detection Module (CO2 Detection Module) K30 has 2 analog outputs and 2 digital outputs, flexibly configurable, and can also be configured via SADK or other custom software. K30 offers customization services for various sensing and control devices. The platform is designed as an OEM module that can be embedded in host devices.
2. Carbon Dioxide Detection Module (CO2 Detection Module) K30 Performance and Technical Parameters
| Operating Principle |
Non-dispersive infrared (NDIR) |
| Measured gas |
Carbon dioxide (CO2) |
| Measurement range CO2 |
0 to 5000 ppm / 0 to 3%vol |
| Accuracy |
±30 ppm ±3% of reading |
| Dimensions |
57 mm x 51 mm x 14 mm |
| Maintenance |
Maintenance-free* |
| Life Expectancy |
> 15 years |
| Operation temperature range |
0 to 50 °C |
| Operation humidity range |
0 to 95% RH (non-condensing) |
| Power supply |
4.5 to 14.0 V DC |
| Response time(T1/e) |
20 sec diffusion time |
| Warm-up time |
1 min |
| Communication |
Uart ( Modbus) |
| Outputs |
|
| OUT 1 linear output |
0 to 4 V DC = 0 to 2000 ppm |
| OUT 2 linear output |
1 to 5 V DC = 0 to 2000 ppm |
| OUT 3 digital output |
700/800 ppm |
| OUT 4 digital output |
900/1000 ppm |
*Maintenance-free with using SenseAir ABC logic Self calibration using for normal indoor applications.
*Maintenance-free operation using SenseAir ABC Logic automatic calibration is only for normal indoor applications.
