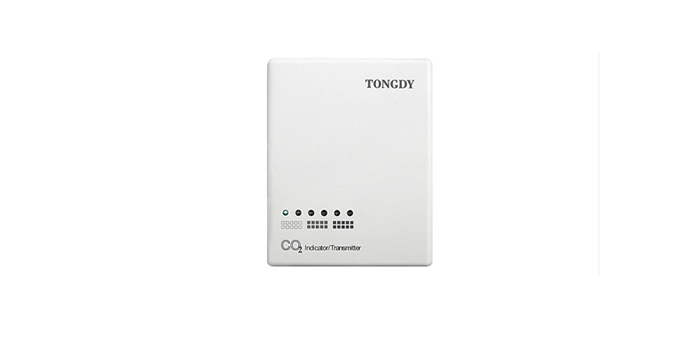

Carbon Dioxide Transmitter - TSM-CO2

Product Features:

Real-time monitoring of CO2 concentration

Built-in NDIR type CO2 infrared sensor with a service life of up to 15 years

CO2 sensor uses patented automatic calibration technology, eliminating the need for manual calibration in practical applications

Wall-mounted and duct-mounted types available

Optional with 6 indicator lights to show different CO2 concentrations

Suitable for greenhouses, ventilation systems, and other applications

Provides 1 analog output, selectable voltage or current output

Voltage output selectable via jumper: 0~5VDC/0~10VDC optional, current output: 4~20mA

1 relay ON/OFF output optional, with four CO2 values selectable to control the relay

Specially designed with a touch button for models with 1 ON/OFF output to operate ventilation equipment

RS-485 communication interface optional: 15KV anti-static protection, independent address setting

24VAC power supply or 220VAC with power adapter

Product CE certified



Applications:

The F2000TSM-CO2 monitoring transmitter is used to monitor and transmit CO2 concentration in ambient air. This monitoring transmitter can be connected

to a DDC/PLC controller or other systems, enabling real-time monitoring of CO2 concentration in ambient air and control of ventilation equipment.

RS-485 communication interface is optional, and it can be connected to a PC via an RS232/485 converter with independent address setting.

Detects CO2 concentration and transmits it to a DDC/PLC controller

Applied to all ventilation equipment

Displays CO2 concentration range through 6 LED indicator lights
