Product Introduction

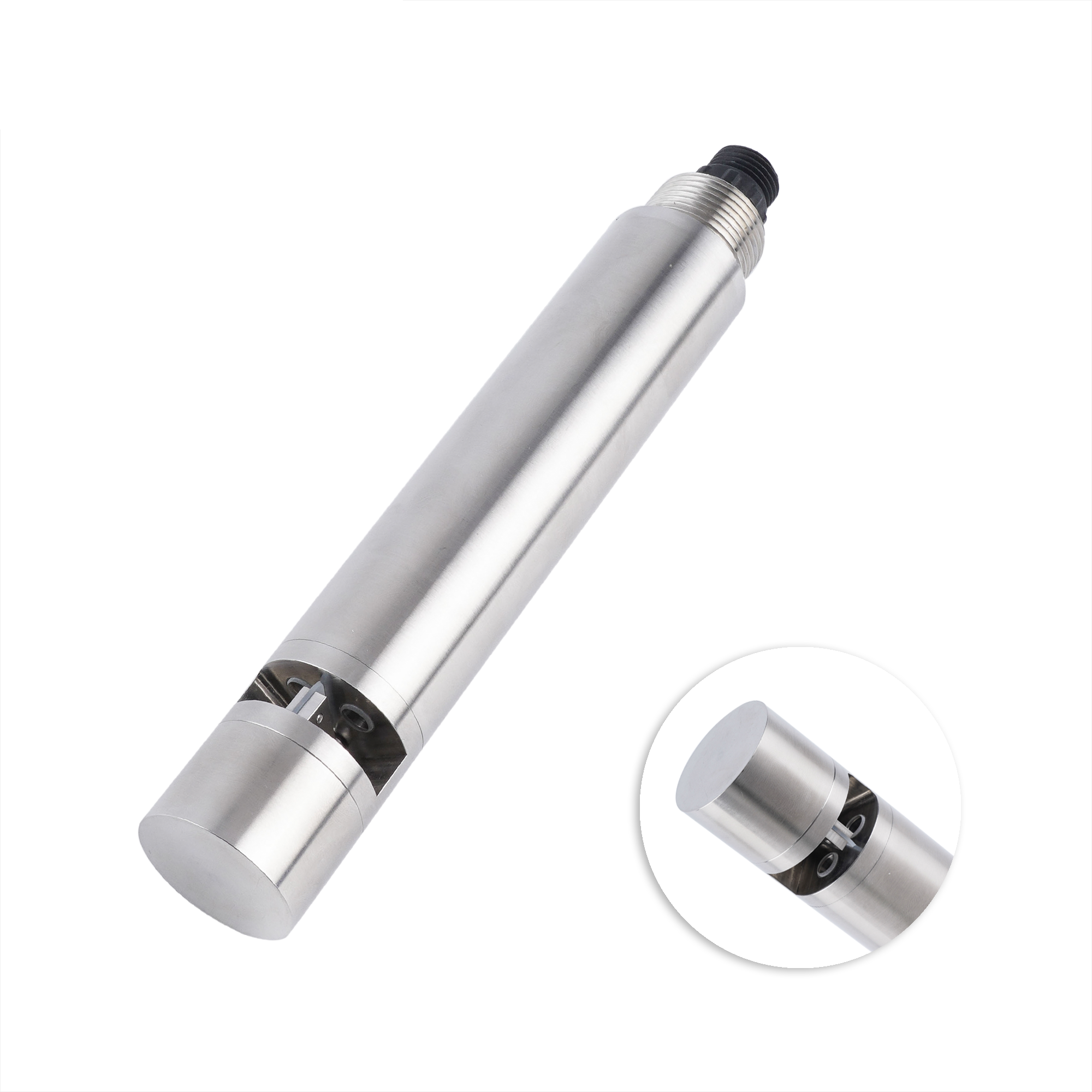

AMT-COD300
Smart typeCOD sensor
AMT-COD300 analyzes parameters such as COD, turbidity, and temperature in water based on ultraviolet absorption method. Organic pollutants mainly produce absorption in the ultraviolet and visible bands.Absorption, through scanning analysisThe absorption spectrum in the 254nm UV-visible band, combined with chemical modeling algorithms, enables qualitative and quantitative analysis of various pollutants, especially suitable for determining changes in water quality composition or concentration. The sensor consists of a light source, spectral analysis, and measurement optical path. The light emitted by the source is split into two beams. One is the measurement beam, which is absorbed by the water sample and then undergoes spectral analysis; the other is the reference beam, which undergoes spectral analysis directly without passing through the water sample. By measuring the spectral characteristics of both beams separately, the concentration of each pollutant in the water sample can be calculated.
Product Features:
Automatic compensation for turbidity interference;
No reagents required, pollution-free, economical and environmentally friendly;

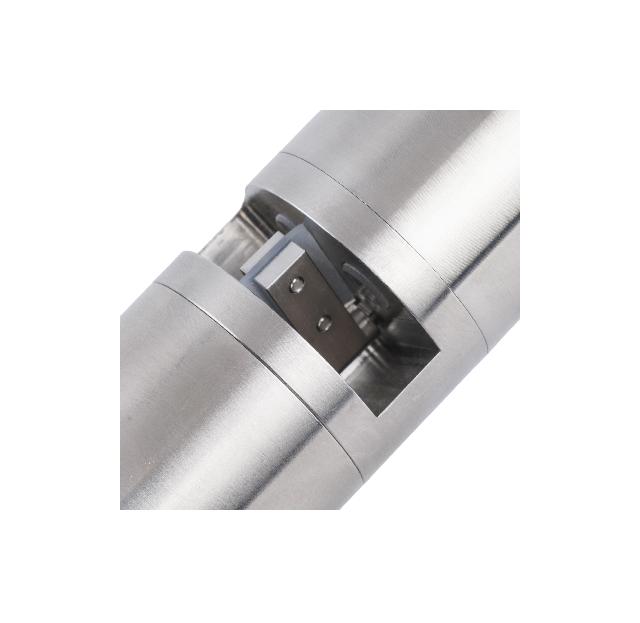

Equipped with a cleaning wiper to prevent biological fouling;
Advanced circuit design, high measurement accuracy, and stable performance;
Compact size, easy installation, and capable of continuous online water quality monitoring;
Parameters:
Model:AMT-COD300
Measurement principle: Dual-wavelength ultraviolet absorption method;COD; Turbidity
Measurement accuracy:COD:5%F.S.Turbidity:0~100NT
Resolution:COD:0.1mg/LTurbidity:0.1NTU
Calibration method: Two-point calibration
Signal output:RS-485(Modbus/RTU)
Measurement range:0~200mg/Lequiv.KHPTurbidity:0~100NTU；0~500mg/L equiv. KHPTurbidity:0~200NTU
Power supply:12~24V DC
Power consumption:0.3W@12V
Operating conditions:0~45°C、<0.1MPa
Storage temperature:-5~65°C
Protection rating:IP68
Installation: Immersion type
Cable length:5meters, other lengths customizable
Dimensions:D32mm,L185mm
Main Application Areas
- Campus Landscape Lakes — Continuous COD monitoring for campus landscape lakes to support environmental education and water quality management.
- Campus Rivers — Real-time COD data collection in campus rivers for water quality assessment and pollution control.
- Environmental Education — Provides live COD data for teaching and research in environmental science programs.
- Water Body Management — Assists in managing water quality and maintaining healthy aquatic ecosystems on campus.
