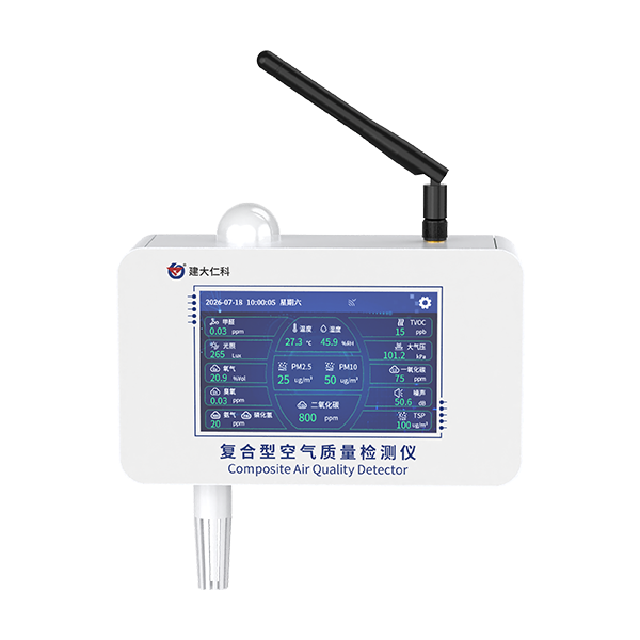

Product Introduction
Integrates multiple measurement elements into one unit, can simultaneously integrate up to 21 measurement elements.
4.3-inch large-screen Chinese LCD display, simple and friendly interface; touch screen control for simple and intuitive operation.
Can measure multiple elements including temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, O2, SO2, NO2, H2, H2S, NH3, smoke, PH3, CL2, etc.
Wall-mounted installation, easy to install, 1-year warranty.
10~30V wide voltage range power supply.
| DC Power Supply (Default) | DC 10-30V |
| Maximum power consumption | 485, ETH, 4G models: 5W (24V DC power supply) WIFI type: 1.6W (24V DC power supply) |
| Detection parameters | Temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3、CO、O2、SO2、NO2、H2、H2S、NH3smoke, CL2、PH3 |
| Working environment: | Temperature -10℃-55℃; Humidity 0~95%RH non-condensing TSP element: Temperature -10℃-55℃; Humidity 0~70%RH |
| 信号输出 | RS485 output (standard ModBus-RTU protocol) RJ45 network port upload, supports static IP address, automatic IP address acquisition function, supports cross-gateway, domain name resolution WIFI Wireless Transmission 4G Wireless Transmission |
| 安装方式 | Wall-mounted |
