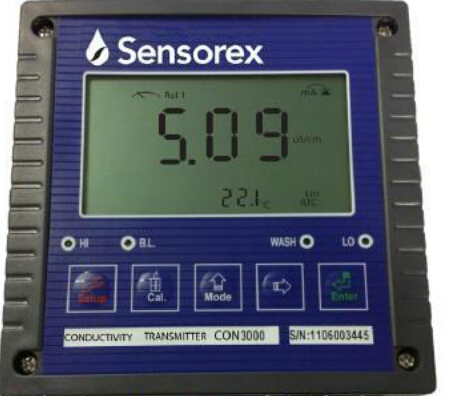

Conductivity Transmitters - CON3000, CON500, TCSMA

Conductivity Transmitter

Models: CON3000, CON500, TCSMA, TCSTX, CT1000

Description:
The conductivity transmitters CON3000, CON500, TCSMA, TCSTX, CT1000 are compact, low-cost transmitters that output 4-20 mA when used with conductivity sensors. Additionally, the new TCSTX and TCSMA transmitters can be used with our toroidal inductive conductivity sensors.

CON500 4-20mA Conductivity Transmitter
1. Six selectable wide conductivity measurement ranges
2. Isolated output to prevent interference from input sources
3. Over-range output current indicator, over-range measurement can be achieved via 3.8 mA output current
4. Hold output current indicator to display 'HOLD' in calibration or setup mode
5. Settable 4-20 mA current output range
6. Simultaneous display of conductivity and temperature values
7. Simple key operation
8. Automatic (with Pt 100) or manual temperature compensation
9. Panel or wall mount, NEMA 4X, IP65 standard waterproof enclosure

TCSMA 4-20mA Toroidal Conductivity Transmitter
1. 4-20mA isolated output, loop powered (16-35V DC)
2. User-adjustable temperature compensation (0-4%/°C)
3. Selectable measurement ranges
4. Adjustable zero and span
5. Direct/reverse operation
6. NEMA 4X enclosure, multiple mounting configurations

TCSTX 4-20mA Toroidal Conductivity Transmitter
1. 4-20mA isolated output, loop powered (16-35VDC)
2. Two-segment high-definition large screen display
3. Compatible with conductivity and process temperature
4. User-adjustable temperature compensation (0-4%/°C)
5. 4-key menu-driven, field-selectable ranges
6. Adjustable zero and span
7. NEMA 4X enclosure, multiple mounting configurations


CT1000 4-20mA Conductivity Transmitter
1. Competitive price
2. Easy to use and compact size
3. 4-20mA loop powered
4. Adjustable zero and span
5. Fully encapsulated
