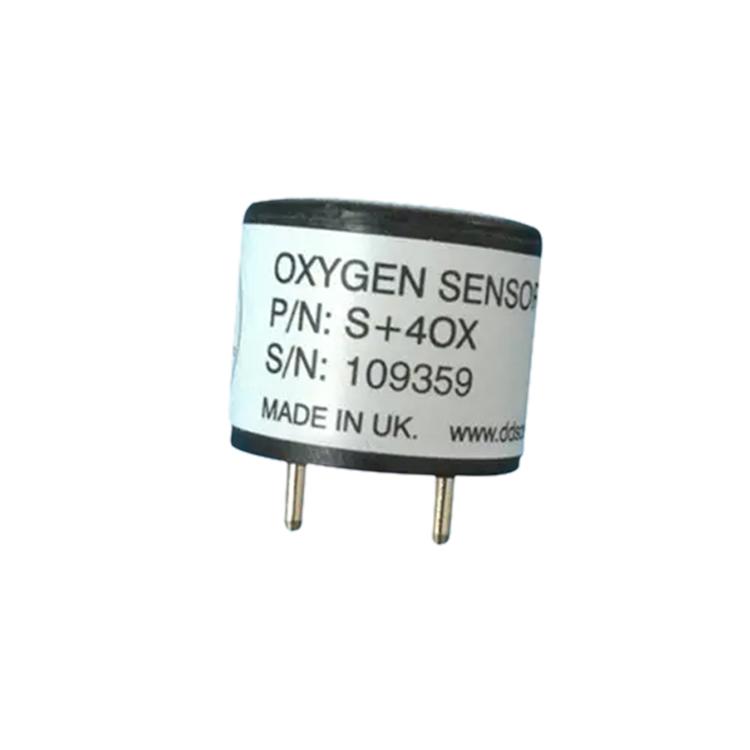

UK DDS Oxygen Sensor O2 Sensor S+4OX Product Description:
The oxygen sensor (O2 sensor) (S+4OX) is mainly used to measure oxygen gas concentration in the environment. It has a very robust and stable design, superior performance, and is widely used in coal mines, steel, petrochemical, medical, etc. Typical applications include oxygen alarms and atmosphere analyzers.
UK DDS Oxygen Sensor O2 Sensor Features:
Large output signal
Easy to handle
Good linearity
Good stability
UK DDS Oxygen Sensor O2 Sensor S+4OX Applications:
Extensively used in coal mines, steel, petrochemical, medical, etc.
Oxygen alarms, atmosphere analyzers
UK DDS Oxygen Sensor O2 Sensor S+4OX Parameters:
| Technical Parameters |
|
| Output Current
|
0.1±0.03mA (in air with 20.9% oxygen) |
| Typical Baseline Range (pure air) |
＜0.6% vol O2 |
| T90 Response Time |
<10 seconds |
| Range |
0-25% oxygen concentration |
| Maximum Load |
30% oxygen concentration |
| Linearity Range |
Linear within range |
| Recommended Load Resistor |
100Ω |
| Environment |
|
| Operating Temperature Range |
-30–+50℃ |
| Pressure Range |
800–1200mbar |
| Humidity Range |
15%-95%RH |
| Lifetime |
|
| Long-term Output Drift |
<5% per year |
| Storage Temperature |
0–20℃ |
| Expected Operating Life |
>24 months |
| Warranty Period |
12 months |
| Intrinsic Safety Data |
|
| Maximum Current under Normal Operation |
0.01A |
| Maximum Open Circuit Voltage |
0.9V |
| Maximum Short Circuit Current |
0.5A |

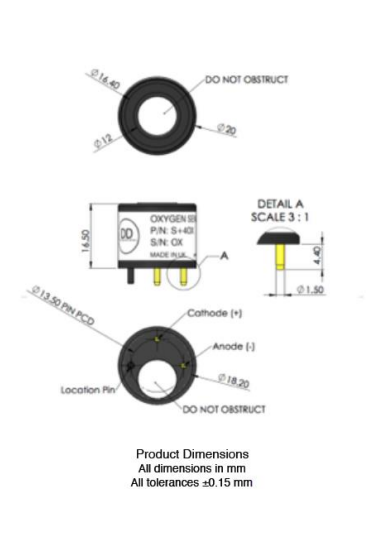

UK DDS Oxygen Sensor O2 Sensor S+4OX Dimensions:
