Deep Water Level Sensor Chip - DLM1

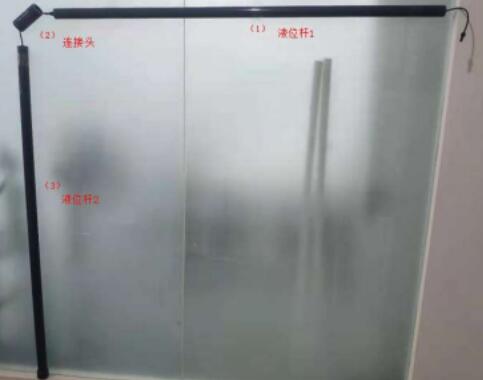

Deep Water Level Sensor Chip -DLM1 (Deep Liquid-level Meter) is a liquid level sensor that senses continuous liquid level changes through capacitive high-frequency dielectric constantmeasurement. Each node has a length of1.5meters and can be cascaded throughRS485multiple nodes.Each node outputs liquid level height and liquid level temperature information. Suitable for deep water level and temperaturemeasurement in underground sewage, manhole water accumulation, rivers, etc. Taking a3meter deep liquid level sensor as an example, the system consists of liquid level rod1, connector, and liquid level rod2cascaded together.



I. Features of Deep Water Level Sensor Chip - DLM1:

Liquid level measurement range: 0-6 meters (up to 4 cascaded nodes to 6 meters)
Liquid level resolution: 0.01 meters, continuous liquid level
Liquid level accuracy: 0.05 meters
Temperature measurement range: -70~150℃
Temperature resolution: 0.1℃
Typical temperature accuracy: 0.5℃
Long-term operating temperature: -40~85℃
Sampling interval: ≥50ms
Protection rating: Chemical-grade PVC-U housing, waterproof IP68



II. Applications of Deep Water Level Sensor Chip - DLM1:

Underground sewage

Manhole water accumulation

Deep water level in rivers, etc.

Temperature measurement
