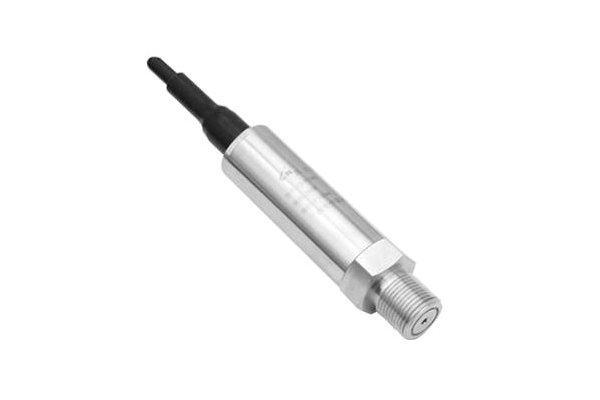

Digital Level Transmitter - CS-PT480
Product Features and Applications
±0.5% F.S accuracy; OEM customizable; diffused silicon oil-filled/ceramic piezoresistive core; multiple pressure ranges; RS485 digital output.
Applications: constant pressure water supply, wastewater treatment, metallurgy and chemical industry.
Product Introduction
1. Digital Level Transmitter CS-PT480 Product Description
The CS-PT480 pressure transmitter features high reliability, high stability, and digital output. It is widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquids, and gases. This series adopts 1Cr18Ni9Ti stainless steel structure with RS485 output.
2. Digital Level Transmitter CS-PT480 Product Features and Applications
±0.5% F.S accuracy; OEM customizable; diffused silicon oil-filled/ceramic piezoresistive core; multiple pressure ranges; RS485 digital output.
Applications: constant pressure water supply, wastewater treatment, metallurgy and chemical industry.
3. Digital Level Transmitter CS-PT480 Technical Parameters
| General |
Value |
Remarks |
| Pressure Range |
0~2......200 mH2O |
1mH2O =9.81KPa
|
| Temperature Range |
-40℃~85℃ |
|
| Overload Pressure |
1.5 times rated pressure (1.5X) |
|
| Burst Pressure |
3 times rated pressure (3X) |
|
| Accuracy |
±0.5%F.S |
|
| Stability |
Typical 0.2% F.S/year |
|
| Operating Temperature |
-40℃~85℃ |
|
| Compatible Media |
All corrosive media compatible with 1Cr18Ni9Ti |
|
| Output Signal |
RS485 |
|
| Power Supply |
10~30Vdc |
|
| Insulation |
＞100M Ω@50V |
|
| Electrical Connection |
Waterproof cable gland |
|
| Pressure Connection |
Submersible, threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
|
| Pressure Type |
Gauge G, Sealed gauge S |
|
| Response Time |
10ms |
|
| EMC |
EMI: EN50081-1/-2; EMS: EN50082-2 |
|
