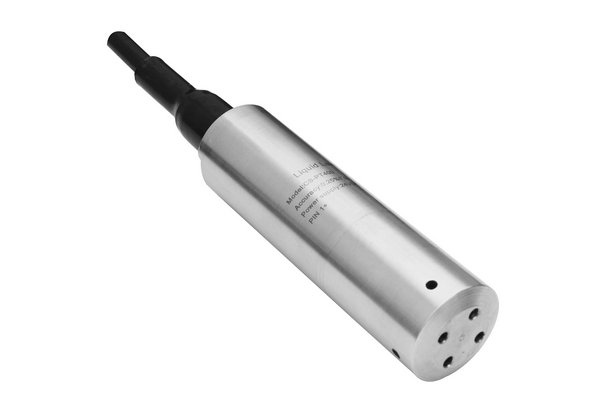

Digital Temperature and Level Transmitter - CS-WPT410

I. Digital Temperature and Level Transmitter CS-WPT410 Product Features and Application Areas:

±0.5% F.S accuracy; OEM available; diffusion silicon oil-filled core; multiple pressure ranges; submersible and threaded mounting; RS485 digital output.

Applications: hydrological monitoring, constant pressure water supply, variable frequency water supply, tail dam water supply, sewage treatment, water-saving irrigation.

II. Digital Temperature and Level Transmitter CS-WPT410 Product Description:

The CS-WPT410 series is a transmitter that measures temperature and pressure simultaneously. It features high reliability, high stability, and high accuracy. Widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquids, and gases.

The product adopts a 1Cr18Ni9Ti stainless steel structure, with an oil-filled pressure core from a foreign brand, and RS485 output.

Special breathable cables with wear resistance, oil resistance, acid and alkali resistance, and high strength can be configured according to different usage sites.

III. Digital Temperature and Level Transmitter CS-WPT410 Technical Parameters:

General	Value	Remarks
Pressure Range	0~2......200 mH2O	1mH2O =9.81KPa
Overload Pressure	1.5 times rated pressure (1.5X)
Burst Pressure	3 times rated pressure (3X)
Accuracy	±0.5%F.S
Stability	Typical value 0.2% F.S/year
Operating Temperature	-40℃~85℃
Compatible Media	All corrosive media compatible with 1Cr18Ni9Ti
Output Signal	RS485
Power Supply	10~30Vdc
Insulation	＞100M Ω@50V
Electrical Connection	Waterproof cable gland + two-stage rectangular ring + sealing ring + sealant + potting compound, five-level sealing, IP68 protection
Pressure Port	Submersible, threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure Type	Gauge G, Sealed Gauge S
Response Time	10ms
Electromagnetic Compatibility	Electromagnetic emission: EN50081-1/-2; Electromagnetic immunity: EN50082-2
