Product Introduction

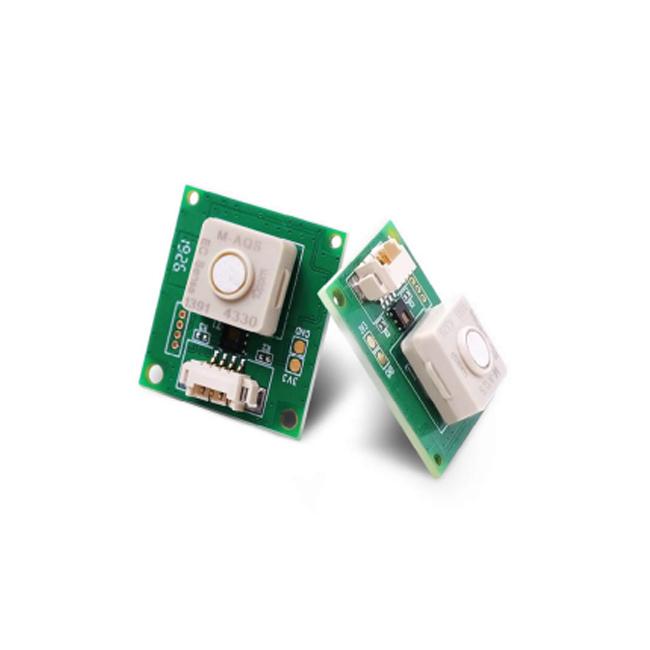

German EC sensor air quality detection moduleTB600C-IAQ- -200 Description:
The TB600B series IAQ air quality detection module integrates many high-precision detection technologies from Germany, as well as design concepts from the German team. The core sensor uses the German EC Sense solid polymer sensor, which is very small in the electrochemical field. It can replace our nose to accurately detect gas concentrations, achieving precise monitoring. UART digital signal output eliminates the need for customers to understand sensor applications and the tedious work of calibration.
German EC sensor air quality detection moduleTB600C-IAQ- -200 Features:
High precision, long lifespan
Fast response, fast return to zero, plug and play
Good anti-poisoning performance
Easy to use, UART digital signal output
German sensors are durable and reliable
Excellent accuracy, repeatability, linearity, and consistency
Zero point without drift
Strong anti-electromagnetic interference capability
With fixed mounting holes for easy installation
Sleep-style design, suitable for low-power IoT applications
Independent temperature and humidity digital sensor output
RoHS environmentally friendly design
German EC sensor air quality detection moduleTB600C-IAQ- -200 Applications:
Indoor home air quality pollution monitoring
Online purification systems for fresh air in homes and commercial buildings
Household fresh air machines and purifiers
Commercial premises air quality pollution monitoring (offices,
Shopping malls, airports, train stations, gyms, hotels)
Indoor temperature and humidity monitoring instruments
Vehicle air purifiers
Air monitoring in public transportation spaces
HVAC systems
Smart wearable devices (wristwatches, masks, phones)
Health and fitness equipment
Range hoods and smart home products
Laboratory fume hood systems
Ultra-clean laboratory environmental monitoring
Small drone environmental air quality monitoring
German EC sensor air quality detection moduleTB600C-IAQ- -200 Parameters:
| Detection principle |
German EC Sense solid polymer electrochemical detection technology |
| Order number |
04-TB600C-IAQ- -200-01 |
| Detection gas |
Nitrogen oxides, carbon monoxide, amines, odors and smells, sulfide gases, volatile organic gases, most toxic and harmful gases |
| Detection range |
0~200ppm; display resolution: 0.1ppm. |
| Minimum detection limit |
1ppm |
| Stabilization time (typical value) |
Clean air stabilization time <30 seconds (on-site environment without high-concentration pollution gases, no significant air flow, or storage environment without high-concentration high-concentration pollution gases) |
| Response time (typical value) |
<3 seconds (T50: <40 seconds; T90: <80 seconds; T100: <180 seconds;) |
| Return to zero time (typical value) |
50ppm return to zero (below 0.03ppm) <40 seconds (requires ventilation in a relatively clean environment to return to zero) 100ppm return to zero (below 0.03ppm) <80 seconds (requires ventilation in a relatively clean environment to return to zero) |
| Calibration substance |
Mixed calculation and calibration of multiple harmful gases such as sulfides, VOCs, CO, etc. Note: The smaller the measurement range, the higher the detection accuracy. It is not recommended for users to exceed the measurement range. Our company can calibrate according to customer requirements. |
| Sensor Expected Lifespan |
More than 3 years in relatively clean air, temperature 0-25°C, humidity 30-70% (frequent exposure to corrosive gases, high-temperature environments And in environments with <20% low humidity, sensor lifespan may be reduced) |
| Output signal |
Standard output: 3.3V level UART digital signal (communication protocol see later) |
| Interface definition: VCC-red, GND-black, RX-yellow, TX-black; |
|
| Baud rate: 9600, data bits: 8, stop bits: 1; |
|
| Circuit board dimensions |
23 x 25.5 x 10.2mm (with sensor) |
| Circuit board dimensions |
23 x 25.5 x 4.85mm (without sensor) |
| Weight |
3.1g |
