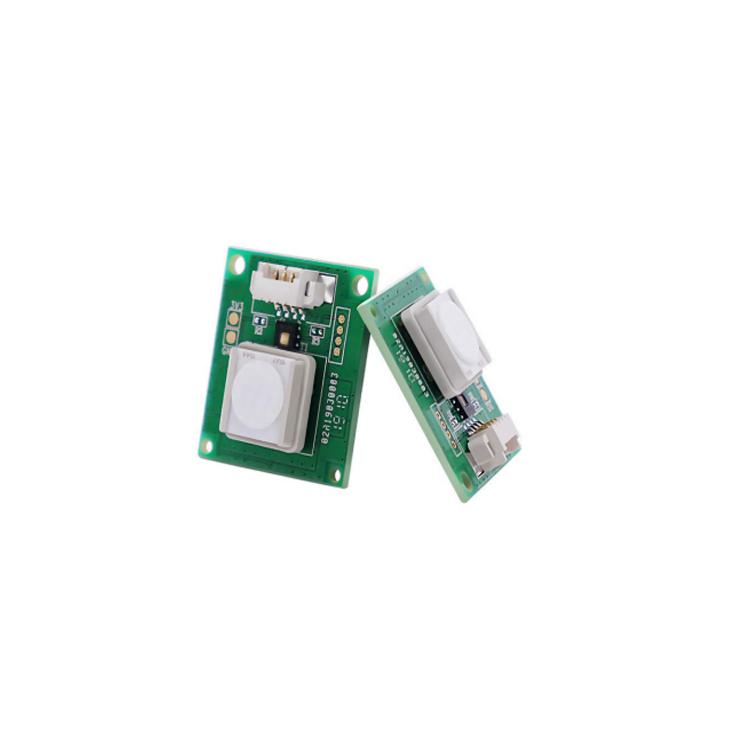

German EC Sense Formaldehyde Sensor - TB600B

German EC Sense Formaldehyde Sensor TB600B Description:

The TB600B series formaldehyde detection module integrates numerous high-precision detection technologies from Germany, along with the design philosophy of the German team. The core sensor uses the German EC Sense solid polymer formaldehyde sensor. It can replace our nose to accurately detect formaldehyde concentration, achieving precise monitoring of formaldehyde gas. UART digital signal output eliminates the need for customers to understand sensor applications and the tedious work of calibration.

German EC Sense Formaldehyde Sensor TB600B Features:

High precision, long lifespan

Fast response, fast return to zero, plug-and-play

Good anti-poisoning performance

Easy to use, UART digital signal output

German sensor, durable and reliable

Excellent accuracy, repeatability, linearity, and consistency

No calibration required, zero drift

Strong electromagnetic interference resistance

With fixed mounting holes for easy installation

Fourth-generation formaldehyde sensor with completely upgraded formula, materials, and production process

Extremely strong anti-interference performance, with good resistance to low concentrations of ethanol, CO, aromatic hydrocarbons, odors, smoke, air fresheners, etc.

New microcircuit design, plug-and-play, no long warm-up time, fast response, fast return to zero

Independent digital temperature and humidity sensor, combined with intelligent algorithms, stronger environmental adaptability, more accurate detection, and long-term stability.

German EC Sense Formaldehyde Sensor TB600B Applications:

Formaldehyde gas from decorative furniture and materials in homes and commercial places

Air pollution detection after home and commercial renovation

Air purifiers / fresh air systems

The purification effect can be monitored anytime and anywhere by detecting formaldehyde in the air, monitoring air quality before and after purification, achieving automatic control of purification and fresh air equipment, efficiently removing formaldehyde, and achieving a clean air environment. In-vehicle air pollution detection

When the nose becomes adapted inside the car, this detection module can detect the air in real time, achieving linkage with the air conditioning for internal or external circulation settings, or prompting to open windows for ventilation, or linking with the vehicle air purifier to ensure good in-car air quality, ensuring health and comfort.

German EC Sense Formaldehyde Sensor TB600B Parameters:

Detection Principle	German EC Sense solid polymer electrochemical detection technology
Order Number	TB600B-WQ-HCHO-1
Response Time	<3 seconds (T50: <40 seconds; T80: <80 seconds; T100: <120 seconds;)
Detection Range	0-500ppb, maximum overload range: 1ppm, optimal detection range: within 300ppb
Minimum Detection Limit	5pPb
Detection Gas	Formaldehyde HCHO
Output Signal	Interface definition: VCC - red, GND - black, RX - yellow, TX - black
	3.3V level UART digital signal (communication protocol see below)
	Baud rate: 9600, data bits: 8, stop bits: 1
Operating Voltage	4.5-5.5V DC
Operating Current	5Y DC @ 5mA
Power Consumption	25mW @5Y DC
Accuracy	±5% FSD
Repeatability	±1% FSD
Operating Temperature	-20~55TC
Optimal Operating Temperature	257C
Operating Humidity	10%-95%RH
Operating Pressure	Atmospheric pressure ±10%
Circuit Board Dimensions	23 x 25.5X10.2mm (With sensor)
Circuit Board Dimensions	23 X 25.5X4.85mm (Without sensor)
Weight	3.1g
