Product Introduction

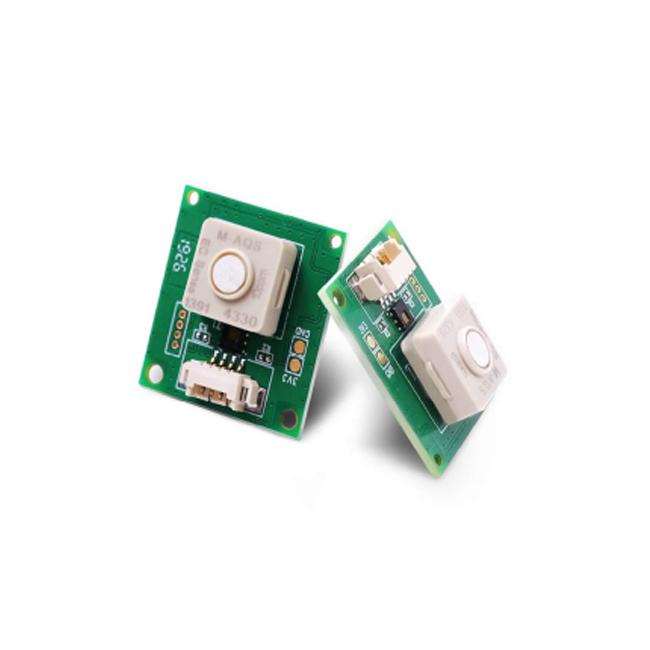

Description of German EC sensor formaldehyde sensor TB600C-HCHO-100:
The TB600C series HCHO formaldehyde detection module integrates many high-precision detection technologies from Germany, as well as the design concepts of the German team. The core sensor uses the German EC Sense solid polymer sensor, which is very small in the electrochemical field. It can replace our nose to accurately detect gas concentrations and achieve precise monitoring. UART digital signal output saves customers the trouble of understanding sensor applications and the tedious work of calibration.
Features of German EC sensor formaldehyde sensor TB600C-HCHO-100:
High precision, long lifespan
Fast response, fast return to zero, plug and play
Good anti-poisoning performance
Easy to use, UART digital signal output
German sensors are durable and reliable
Excellent accuracy, repeatability, linearity, and consistency
Zero point without drift
Strong anti-electromagnetic interference capability
With fixed mounting holes for easy installation
Sleep-style design, suitable for low-power IoT applications
Independent temperature and humidity digital sensor output
RoHS environmentally friendly design
Application of German EC sensor formaldehyde sensor TB600C-HCHO-100:
Formaldehyde monitoring in the chemical industry
Industrial production process monitoring
Laboratory environment
Materials and biological products
Parameters of German EC sensor formaldehyde sensor TB600C-HCHO-100:
| Detection principle |
German EC Sense solid polymer electrochemical detection technology |
| Order number |
04-TB600C-HCHO-100-01; |
| Detection gas |
HCHO formaldehyde gas |
| Detection range |
0~100ppm; indication resolution: 0.1ppm |
| Minimum detection limit |
1ppm |
| Stabilization time (typical value) |
First power-on after storage in clean air <120 seconds |
| First power-on after storage in non-clean air <240 seconds (except in environments with high concentrations of polluting gases) |
|
| Response time (typical value) |
<3 seconds (T50: <40 seconds; T90: <80 seconds; T100: <180 seconds;) |
| Return to zero time (typical value) |
50ppm return to zero (below 1ppm) <40 seconds (requires ventilation in a relatively clean environment for return to zero) |
| 100ppm return to zero (below 1ppm) <80 seconds (requires ventilation in a relatively clean environment for return to zero)
|
|
| Calibration substance |
HCHO formaldehyde gas calibration Note: The smaller the measurement range, the higher the detection accuracy. It is not recommended for users to exceed the measurement range. Our company can calibrate according to customer requirements. |
| Sensor Expected Lifespan |
In relatively clean air, temperature 0-25°C, humidity 30-70%, more than 3 years (frequent exposure to corrosive gases, high temperature In environmental and low humidity conditions below 20%, sensor lifespan will be reduced) |
| Output signal |
Standard output: 3.3V level UART digital signal (communication protocol see later) |
| Interface definition: VCC-red, GND-black, RX-yellow, TX-black; |
|
| Baud rate: 9600, data bits: 8, stop bits: 1; |
|
| Circuit board dimensions |
23 x 25.5 x 10.2mm (with sensor) |
| Circuit board dimensions |
23 x 25.5 x 4.85mm (without sensor) |
| Weight |
3.1g |
