Product Introduction
HCHO Formaldehyde Sensor (ES4-HCHO-5) Technical Parameters:
| Detection Principle: |
GermanEC SenseSolid polymer electrochemical detection technology |
Sensitivity: |
35±10 nA/ppm |
| Order Number: |
01-ES4-HCHO-5-01 |
Temperature Range: |
-20°Cto50°C |
| Detection Gas: |
Formaldehyde |
Pressure Range: |
800to1200hPa |
| Detection Range: |
0-5ppm |
Maximum Overload: |
5ppm |
| Resolution: |
0.01ppm |
Repeatability: |
Reduced1% |
| Working Principle: |
Amperometric,3electrode |
Humidity Range (non-condensing): |
10-95%Relative humidity |
| Warm-up Time: |
<20seconds |
Recommended Load Resistor: |
100Ω |
| Calibration Substance: |
Formaldehyde standard gas |
|
|

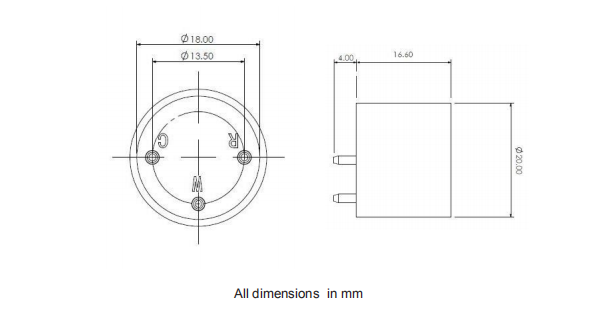

HCHO Formaldehyde Sensor (ES4-HCHO-5) Outline Drawing:
HCHO Formaldehyde Sensor (ES4-HCHO-5) Product Applications:
• TLVTLV monitoring
• Indoor air quality
HCHO Formaldehyde Sensor (ES4-HCHO-5) Product Features:
• Fast response
• Low noise
• No electrolyte leakage
• Low cost for large quantities
• Extreme linear response at high concentrations
• Individually calibrated, including test report
