EDAB - EDAB M1V2-L

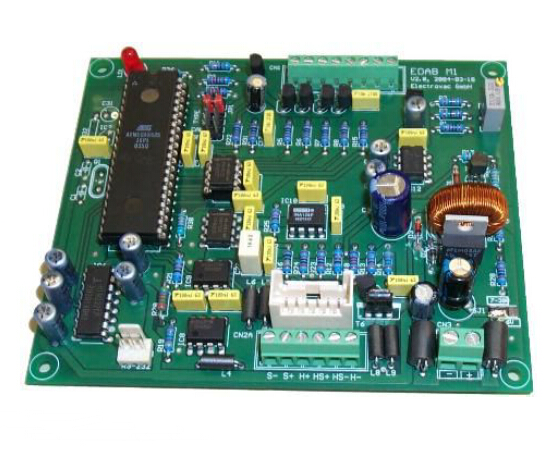

I. Description of EDAB M1V2-L, dedicated circuit board for limiting current zirconia oxygen sensors

The circuit board provided by SENSORE is used to operate oxygen sensors to convert sensor signals into linear output voltage. The oxygen sensor can be installed in a confined space and connected to the circuit board via cable.

The circuit board is suitable for all types of oxygen sensors provided by SENSORE. Customized circuit boards are also available upon customer request.

II. Features of EDAB M1V2-L, dedicated circuit board for limiting current zirconia oxygen sensors:

Power consumption approximately 2.5 – 3.0 watts

Cable to sensor up to 10 meters
PCB size: 120 * 100 mm

Optional software for reading and storing measurement data and board adjustment

III. Technical data of EDAB M1V2-L, dedicated circuit board for limiting current zirconia oxygen sensors

Suitable for all types of sensors
Microprocessor controlled
Temperature control of sensor element (ambient medium temperature does not affect output signal)
Linear output signal 0 – 5 V DC (lower output voltage adjustable with optional software)
4 programmable alarm thresholds (programmable with optional software)

Serial interface
Board adjustment via jumpers (sensor calibration, heating resistance measurement)
Input voltage 7-30 VDC or 6 VDC (optional)
