Product Introduction

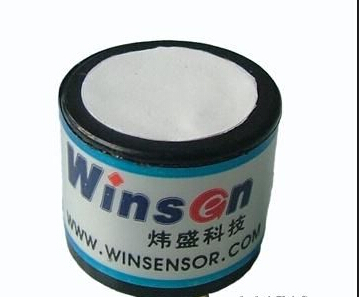

I.Electrochemical Benzene Sensor(C6H6 Sensor) ME3-C6H6 Product Description
ME3-C6H6Electrochemical gas sensoris based on the electrochemical principle, utilizing the measured gas to undergo corresponding oxidation-reduction reactions on the sensor's working electrode and counter electrode, releasing charge, and forming a current through the external circuit. The current magnitude is proportional to the gas concentration, thereby achieving quantitative measurement of the target gas.
II. Features of Electrochemical Benzene Sensor (C6H6 Sensor) ME3-C6H6
Low Power Consumption
High Precision
High Sensitivity
Wide Linear Range
Strong Anti-Interference Capability
Excellent Repeatability and Stability
III. Main Applications of Electrochemical Benzene Sensor (C6H6 Sensor) ME3-C6H6
ME3-C6H6 electrochemical gas sensor is based on the electrochemical principle, utilizing the measured gas to undergo corresponding oxidation-reduction reactions on the sensor's working electrode and counter electrode, releasing charge, and forming a current through the external circuit. The current magnitude is proportional to the gas concentration, thereby achieving quantitative measurement of the target gas.
IV. Technical Specifications of Electrochemical Benzene Sensor (C6H6 Sensor) ME3-C6H6
| Item |
Technical Parameters |
| Measurement Range |
0—100ppm |
| Measuring Limit |
500ppm |
| Detection Life |
2 years |
| Sensitivity |
（0.2±0.12）µA/ppm |
| Resolution |
0.1ppm |
| Temperature Range |
﹣20℃～+50℃ |
| Pressure Range |
Standard atmospheric pressure ±10% |
| Response Time (T90) |
≤120S |
| Humidity Range |
15% - 90% RH non-condensing |
| Zero Drift (+20℃ to +40℃) |
≤400ppm |
| Stability (per year) |
＜5﹪ |
| Load Resistance (recommended) |
10Ω |
| Repeatability |
<2% of output value |
| Bias Voltage |
+300mV |
| Output Linearity |
Linear |
