Product Introduction

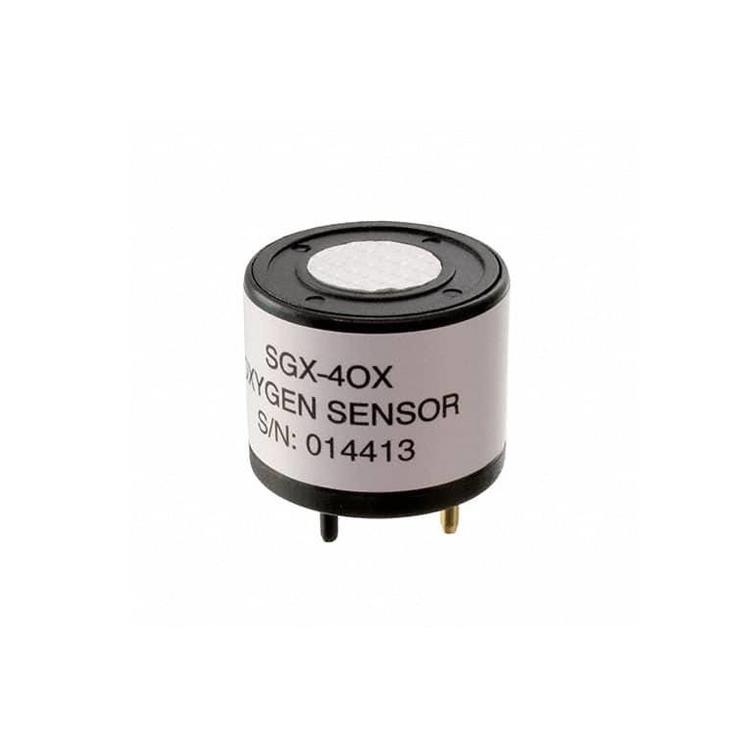

Electrochemical Oxygen Sensor Gas Sensor O2 SensorSGX-4OX Parameters:
| Range |
0- 25% O2 |
| Zero Current (Offset) |
< 0.6 %v/v O2 |
| Air Output Signal |
70 to 130 μA |
| Linearity |
Linear |
| Response Time (t90) |
<15s |
| Maximum Overload |
30%O2 |
| Long-term Output Drift |
<5% per year |
| Recommended Load Resistor |
100 ohms |
| Warranty |
2 years |
| Operating Conditions |
|
| Temperature Range |
-30°C to +50°C |
| Operating Humidity |
5-95% RH (non-condensing) |
| Pressure Range |
800 to 1200 mbar |
| Storage Temperature |
0°C to 20°C |
| Expected Operating Life |
>2 years |
