Product Introduction

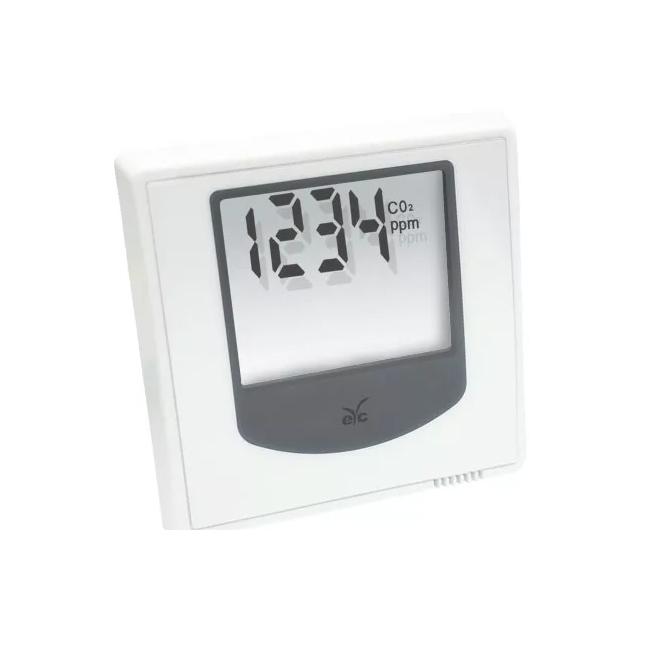

Taiwan EYC Indoor CO2 SensorGS23 Features:
Optional LCD display screen
Measures indoor CO2 concentration
1 analog output or Modbus RS-485
Optional: analog output + RS-485
Simple design, quick installation, easy maintenance
Free programmable software, via RS-485 output
Remote monitoring and recording of on-site detection data
EYC Indoor CO2 SensorGS23 Applications:
Widely used for indoor air quality monitoring / commercial smart office buildings and residential indoor air quality monitoring
HVAC / Air conditioning systems / Libraries / Green industry / Supermarkets and department stores / Data monitoring rooms / Storage rooms / Indoor ventilation adjustment and air conditioning system monitoring, etc.
Taiwan EYC Indoor CO2 SensorGS23 Parameters：
| Input sensor type |
|
| Carbon dioxide |
NDIR non-dispersive infrared sensor |
| Measurement range |
|
| Carbon dioxide |
0- 2000 PPM |
| Output |
|
| Analog output |
0- 10 V / 4-20 mA |
| Communication format |
RS-485 |
| Signal connection method |
Three-wire loop |
| Load impedance |
Max. 250 Ω for 1 output Min. 10 KΩ for V output |
| Warm-up time |
<2 minutes; stabilization time 20 minutes |
| Response time |
t90 <2 minutes |
| Sampling time |
Approximately 6 seconds |
| Product installation method |
Indoor wall-mounted installation |
| Protection rating |
IP20 |
| Certification |
CE |

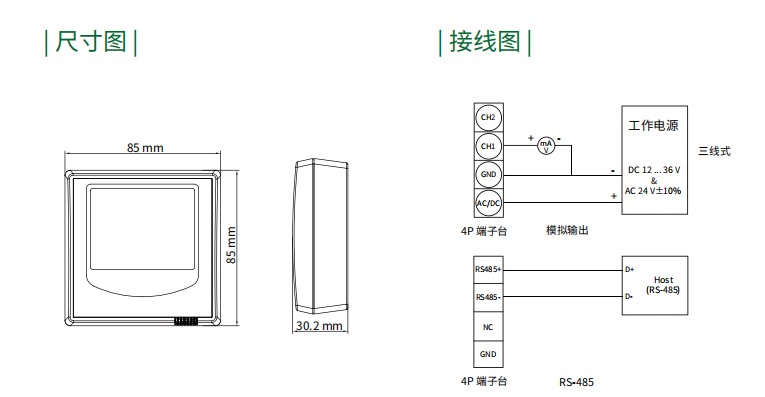

Taiwan EYC Indoor CO2 SensorGS23 Dimension Drawing:
