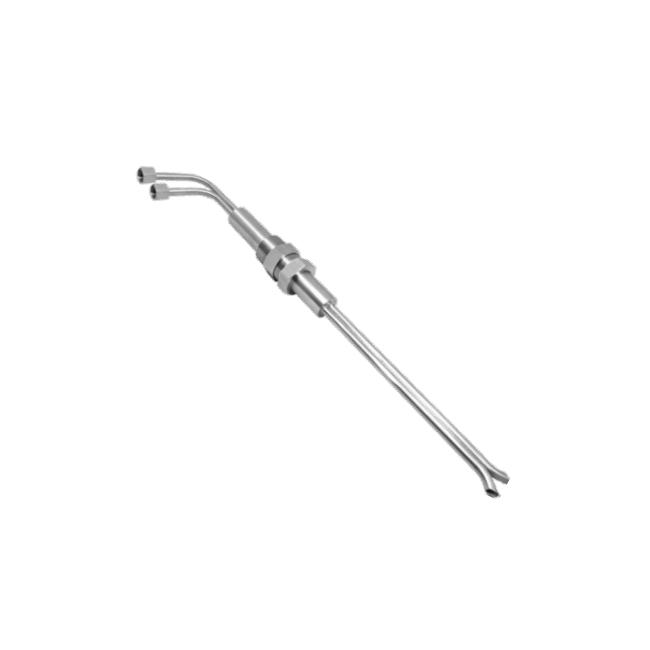

Taiwan EYC S-type Pitot Tube Flowmeter - AFMS-160
High temperature resistance, corrosion resistance, anti-clogging, quick conversion of flow velocity and flow rate
. Stainless steel Pitot tube, high temperature resistance, corrosion resistance, dust resistance
. Enlarged front-end design to prevent dirt blockage
. Suitable for harsh working conditions, exhaust gas removal, environmental engineering
. Connect eYc pressure gauges PHM/PMM/P063 and display (SD06) to measure dynamic pressure of airflow in pipes
. And calculate wind speed, airflow, and temperature
. Customizable according to customer requirements
Product Introduction
Taiwan EYC S-type Pitot Tube Flowmeter AFMS-160 Product Description:
The AFMS-160 S-type Pitot tube is specially designed for measuring the flow velocity of gas fluids in chimneys and environments, preventing blockage under harsh soot conditions, and enabling rapid response to exhaust and sewage treatment procedures. The S-type Pitot tube measures the local velocity at a specific point and can be applied in scientific research, production, environmental protection, mine ventilation, and tunnel construction. Using a Pitot tube to measure airflow velocity in pipes and converting it to determine flow rate and velocity is convenient and accurate, making it a widely used measurement method, and it can also be used to measure fluid pressure.
Taiwan EYC S-type Pitot Tube Flowmeter AFMS-160 Product Features:
. Stainless steel Pitot tube, high temperature resistance, corrosion resistance, dust resistance
. Enlarged front-end design to prevent dirt blockage
. Suitable for harsh working conditions, exhaust gas removal, environmental engineering
. Connect eYc pressure gauges PHM/PMM/P063 and display (SD06) to measure dynamic pressure of airflow in pipes
. And calculate wind speed, airflow, and temperature
. Customizable according to customer requirements
Taiwan EYC S-type Pitot Tube Flowmeter AFMS-160 Product Applications:
Ventilation ducts / Flue gas industry / Exhaust gas removal / Environmental engineering / Air conditioning systems /Vacuum cleaning, especially high temperature and chimneys /
Wind speed measurement in dusty air and high flow rates in environmental testing
Taiwan EYC S-type Pitot Tube Flowmeter AFMS-160 Product Specifications:
Operating pressure: max 10 barTemperature: Operating: max 250 ℃; Heat resistance: 800℃
Measuring medium/coefficient: Air / Flow coefficient: 0.84
Pipe/Flue installation: Pipe type: SUS316
Probe tube material: Copper or stainless steel (optional)
Connection thread material: Copper or stainless steel (optional)
Installation connection: Below 12": R1 3/4" movable thread / Above 18": R1 1" movable thread
Outlet connection: Below 12": 1/8"G internal thread / Above 18": 1/4"G internal thread
Length: 25/50/100/150/200/300/450/600/800/1000/1500mm
Customizable according to customer requirements
